Part Image

BTS7030-2EPA - Infineon

Description: Infineon PROFET

Download BTS7030-2EPA Model

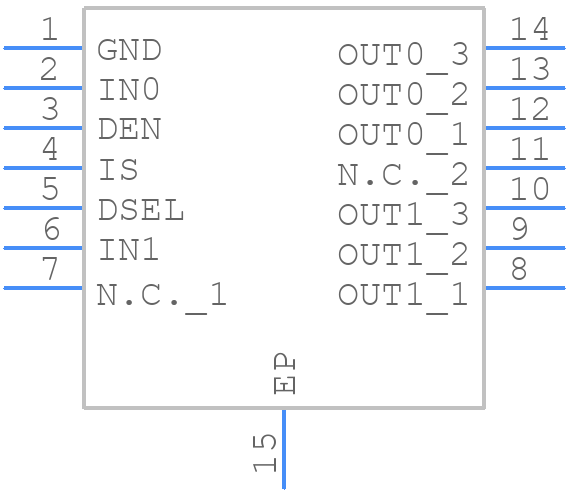

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BTS7030-2EPA - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-14-2+
click to zoom
3D Models
BTS7030-2EPA - Infineon  - 3D model - Small Outline Packages - PG-DSO-14-2+
click to zoom

BTS7030-2EPA Details

  • Manufacturer Part Number:

    BTS7030-2EPA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Indonesia, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    14

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2A

  • Terminal Finish:

    Tin (Sn)

BTS7030-2EPA Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • The sense resistor value depends on the desired current measurement accuracy and the maximum expected current. Infineon provides a sense resistor calculation tool on their website, which can help engineers select the correct value for their specific application.
  • The maximum allowed voltage drop across the BTS7030-2EPA is 0.5 V. Exceeding this voltage drop may affect the device's accuracy and reliability.
  • The BTS7030-2EPA is rated for operation up to 150°C. However, the device's accuracy and reliability may be affected at high temperatures. Engineers should consult Infineon's application notes and thermal design guidelines to ensure proper operation in high-temperature environments.
  • Infineon recommends using a shielded cable or a twisted pair cable for the sense lines, and placing the device close to the load to minimize the sense line length. Additionally, engineers can use EMI filters or shielding on the PCB to reduce electromagnetic interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BTS7030-2EPA Overview

Use the download button to access the BTS7030-2EPA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS70, or try a keyword search, such as Power Management Circuits
