BTS70502EPLXUMA1 - Infineon

Description: • High-side switch with diagnosis and embedded protection • Part of PROFET™+2 12V family • Switch ON capability while inverse current condition (InverseON) • Capacitive load switching mode • Green product (RoHS compliant)

Download BTS70502EPLXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

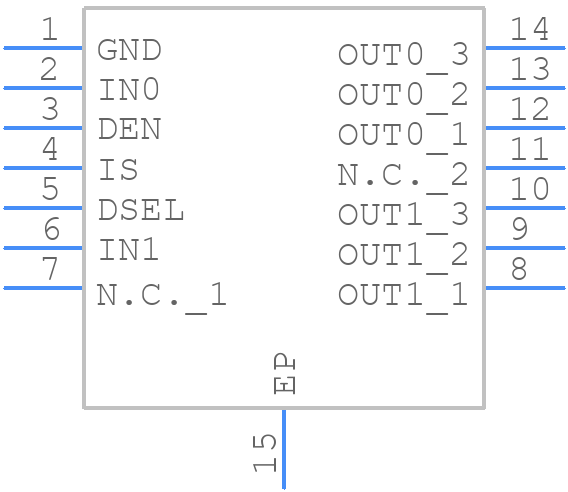

BTS70502EPLXUMA1 - Infineon - PCB symbol
