BTS7750G - Infineon

Description: BTS7750 - Integrated Full-Bridge Driver

Download BTS7750G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

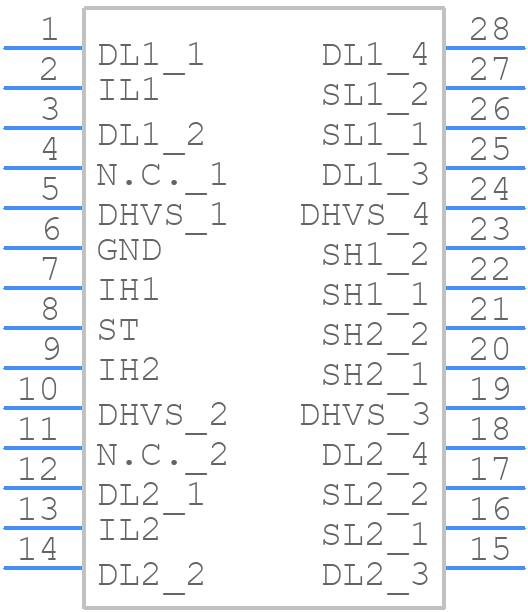

BTS7750G - Infineon - PCB symbol
click to zoom
PCB Footprints
BTS7750G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - P-DSO-28-14
click to zoom
3D Models
BTS7750G - Infineon - 3D model - Small Outline Packages - P-DSO-28-14
click to zoom

BTS7750G Details

  • Manufacturer Part Number:

    BTS7750G

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, PLASTIC, DSO-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    18.1 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Output Current-Max:

    12 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    220

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.6 mm

BTS7750G Frequently Asked Questions (FAQs)

  • The BTS7750G can operate in a temperature range of -40°C to 150°C, making it suitable for high-reliability applications.
  • Infineon provides a configuration tool, the BTS7750G Configurator, which helps engineers to easily configure the device for their specific application. The tool provides a graphical user interface to set up the device's parameters and generate the corresponding configuration code.
  • The BTS7750G has a maximum current rating of 100 A, making it suitable for high-current applications such as electric vehicles, industrial power supplies, and renewable energy systems.
  • The BTS7750G has built-in overcurrent and overvoltage protection features, including current limiting, overcurrent detection, and overvoltage detection. These features help to prevent damage to the device and the system in case of fault conditions.
  • Yes, the BTS7750G is designed for high-availability systems and provides features such as redundant configuration, error detection, and correction mechanisms to ensure reliable operation in critical applications.
