The maximum operating temperature range for the BTS7750GP is -40°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
To ensure safe operating area (SOA) for the BTS7750GP, you should limit the voltage and current within the recommended specifications, and also consider the thermal management and heat dissipation to prevent overheating.
The recommended PCB layout and thermal design for the BTS7750GP involves using a multi-layer PCB with a solid ground plane, placing the device near a heat sink or thermal pad, and ensuring good thermal conductivity and airflow around the device.
To handle high current and voltage transients during switching in the BTS7750GP, you should use a suitable snubber circuit, ensure proper PCB layout and decoupling, and consider using a TVS diode or other transient voltage suppression devices.
The BTS7750GP is a high-power device that can generate electromagnetic interference (EMI). To minimize EMI and ensure electromagnetic compatibility (EMC), you should use a shielded enclosure, implement proper PCB layout and grounding, and consider using EMI filters or shielding components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTS7750GP Overview

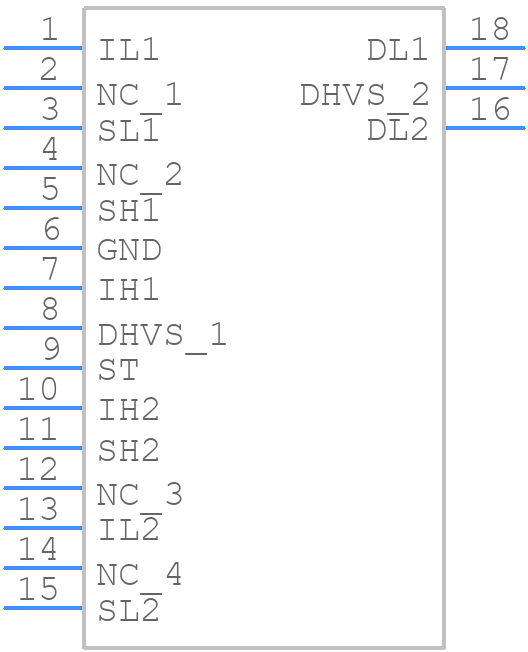

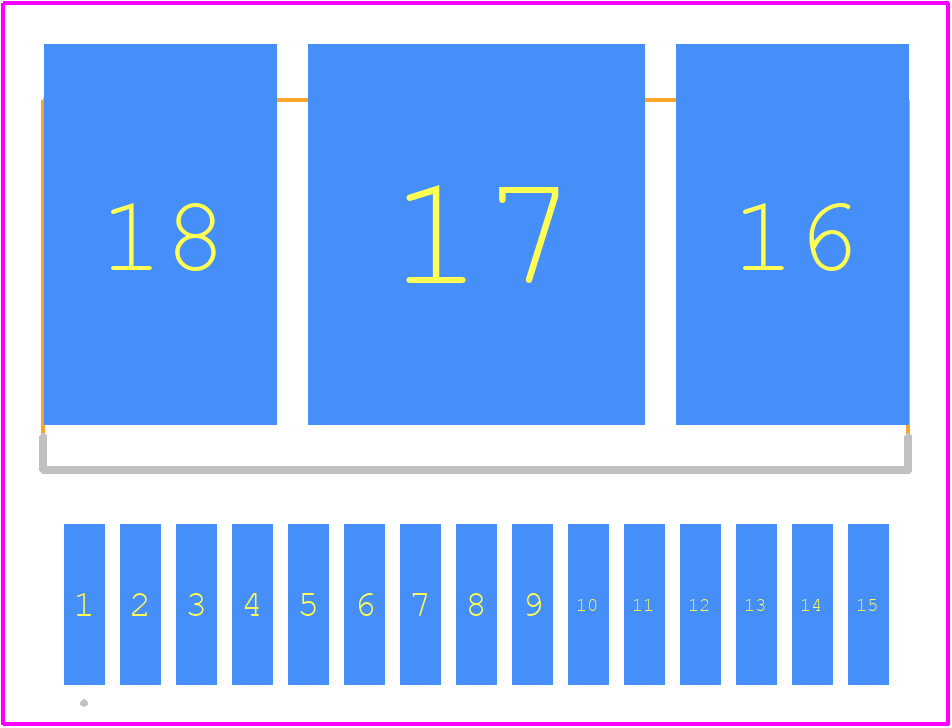

Use the download button to access the BTS7750GP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like BTS77,
or try a keyword search, such as Motion Control Electronics
