- Part Number BTSW-112-01-T-S
- Manufacturer SAMTEC
- Pin Count 24
- Part Category Connector
- Package Category Other

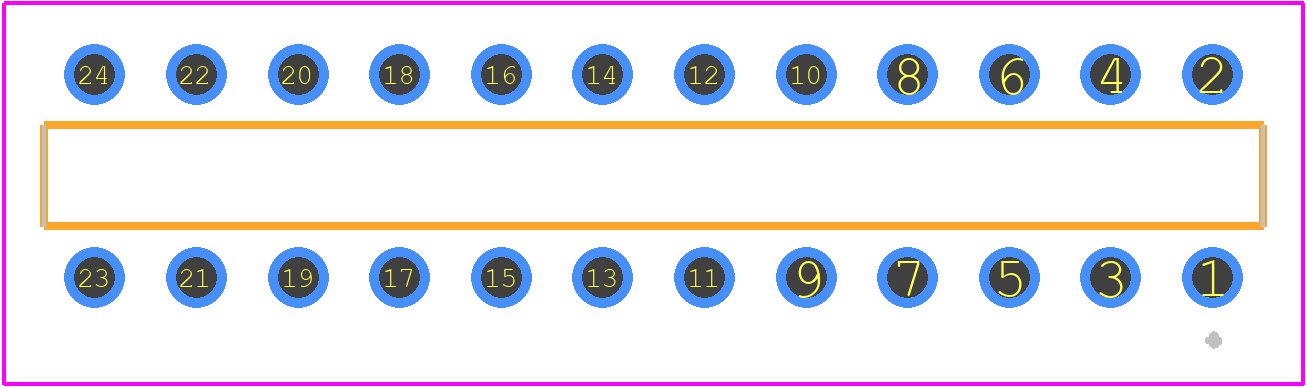

- Footprint Name Other - BTSW-112-01-T-S-4
- Released Date Jun 13, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BTSW-112-01-T-S Details
-
Manufacturer Part Number:
BTSW-112-01-T-S
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
France, Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Samtec Inc
-
YTEOL:
9.1
-
Body Breadth:
0.2 inch
BTSW-112-01-T-S Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the BTSW-112-01-T-S connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the BTSW-112-01-T-S connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can withstand vibrations up to 15 g (147 m/s²) in the frequency range of 10-2000 Hz.
-
Yes, the BTSW-112-01-T-S connector is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (500°F) for a maximum of 10 seconds to ensure reliable connections.
-
The maximum operating temperature of the BTSW-112-01-T-S connector is 125°C (257°F). However, Samtec recommends derating the connector's current rating by 1% for every 1°C (1.8°F) above 85°C (185°F) to ensure reliable operation.
-
The BTSW-112-01-T-S connector is not designed for use in humid or wet environments. It does not have any special coatings or seals to protect it from moisture. If you need a connector for use in a humid or wet environment, you should consider a different connector with appropriate environmental protection.
Trust Checks
Expert Contribution
System Verified
Community Approved
BTSW-112-01-T-S Overview
Use the download button to access the BTSW-112-01-T-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTSW-,
