A 2-layer or 4-layer PCB with a large copper area for heat dissipation is recommended. The device should be placed near a heat sink or a metal plate to improve thermal performance.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's current and voltage ratings at high temperatures.
The maximum allowed voltage transient on the input pins is ±500 mV, with a duration of less than 100 ns. Exceeding this may cause damage to the device.
Use ESD protection devices, such as TVS diodes, on the input and output pins. Also, follow proper handling and storage procedures to prevent ESD damage.
A soldering profile with a peak temperature of 260°C, a dwell time of 30-60 seconds, and a cooling rate of 4-6°C/s is recommended.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BTT6030-2EKA Overview

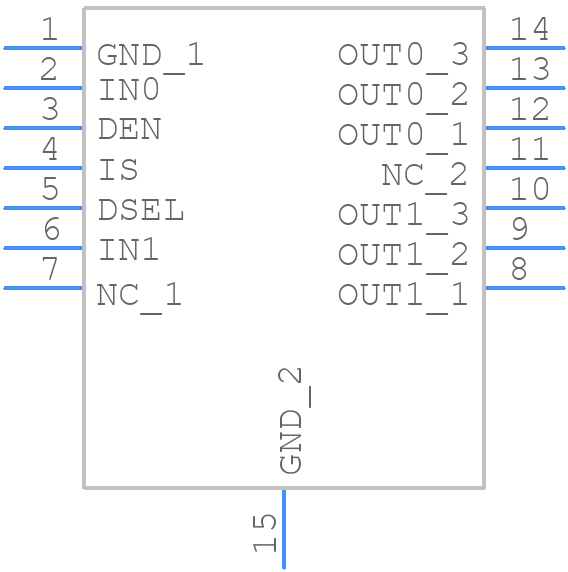

Use the download button to access the BTT6030-2EKA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BTT60,
or try a keyword search, such as Power Management Circuits
