BTT62001EJAXUMA1 - Infineon

Description: Infineon BTT62001EJAXUMA1, Triple Intelligent Power Switch, Smart High-Side, 1.5A, 5 → 36V, DSO 8-Pin

Download BTT62001EJAXUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

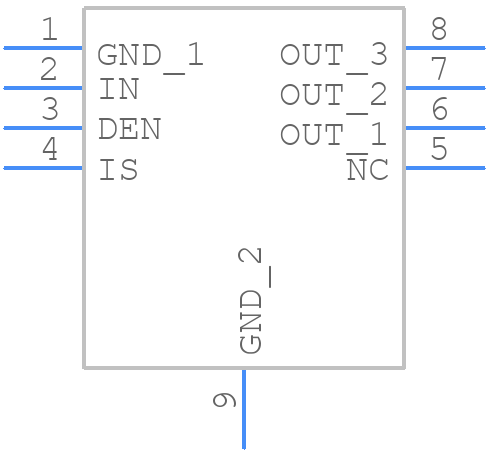

BTT62001EJAXUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
BTT62001EJAXUMA1 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-DSO-8
click to zoom
3D Models
BTT62001EJAXUMA1 - Infineon - 3D model - Small Outline Packages - PG-DSO-8
click to zoom

BTT62001EJAXUMA1 Details

  • Manufacturer Part Number:

    BTT62001EJAXUMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DSO-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    28 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BTT62001EJAXUMA1 Frequently Asked Questions (FAQs)

  • Infineon recommends a 2-layer or 4-layer PCB with a thermal via array under the device to ensure good thermal conductivity. A minimum of 5 thermal vias with a diameter of 0.3 mm is recommended.
  • To ensure EMC, Infineon recommends using a shielded cable and a common-mode choke to reduce electromagnetic interference (EMI). Additionally, a decoupling capacitor should be placed close to the device to filter out high-frequency noise.
  • The maximum allowed voltage on the VCC pin is 5.5 V. Exceeding this voltage may damage the device.
  • Infineon recommends using a soldering iron with a temperature of 260°C (max) and a soldering time of 3 seconds (max) to prevent damage to the device. For rework, a hot air gun with a temperature of 220°C (max) and an air flow rate of 20 L/min (max) is recommended.
  • Infineon recommends storing the device in a dry, cool place with a temperature range of -40°C to 125°C and a relative humidity of 60% (max).
