BU-67301B0T0R-E02 - DDC

BU-67301B0T0R-E02 Details

• Manufacturer Part Number:

  BU-67301B0T0R-E02

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

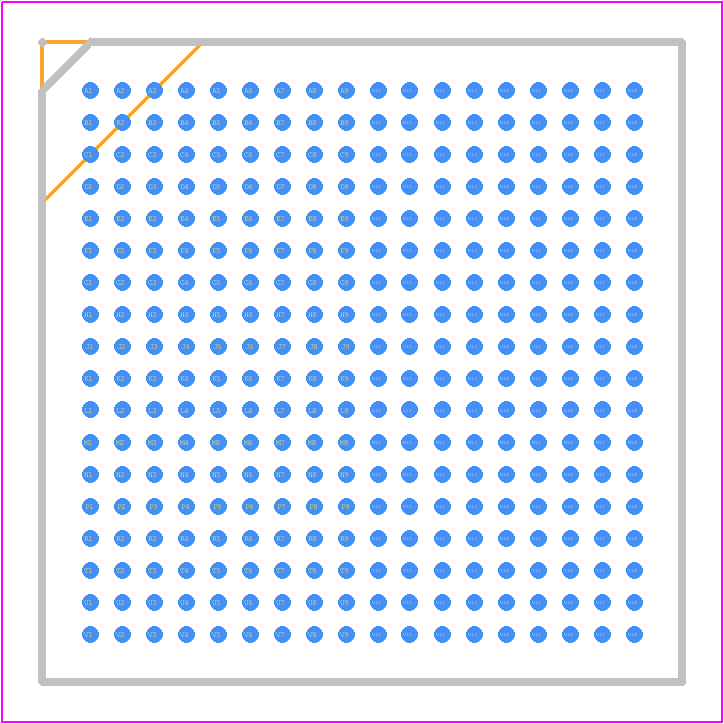

• Package Description:

  16 X 16 MM, 4.70 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, BGA-324

• Pin Count:

  324

• Country Of Origin:

  Taiwan, USA

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Data Device Corporation

• YTEOL:

  7

• Boundary Scan:

  YES

• Bus Compatibility:

  PCI; USB

• Clock Frequency-Max:

  40 MHz

• Communication Protocol:

  MIL STD 1553A; MIL STD 1553B; MCAIR; STANAG-3838

• Data Encoding/Decoding Method:

  BIPH-LEVEL(MANCHESTER)

• Data Transfer Rate-Max:

  0.125 MBps

• JESD-30 Code:

  S-PBGA-B324

• Length:

  16 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  324

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Seated Height-Max:

  4.7 mm

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
