BU-67302B0C0R-202 - DDC

BU-67302B0C0R-202 Details

• Manufacturer Part Number:

  BU-67302B0C0R-202

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan, USA

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Data Device Corporation

• YTEOL:

  7

• Boundary Scan:

  YES

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  16 MHz

• Communication Protocol:

  MIL STD 1553A; MIL STD 1553B; MIL STD 1760; MCAIR; STANAG-3838

• Data Encoding/Decoding Method:

  BIPH-LEVEL (MANCHESTER)

• Data Transfer Rate-Max:

  0.125 MBps

• JESD-30 Code:

  R-PBGA-B233

• Length:

  20 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  233

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

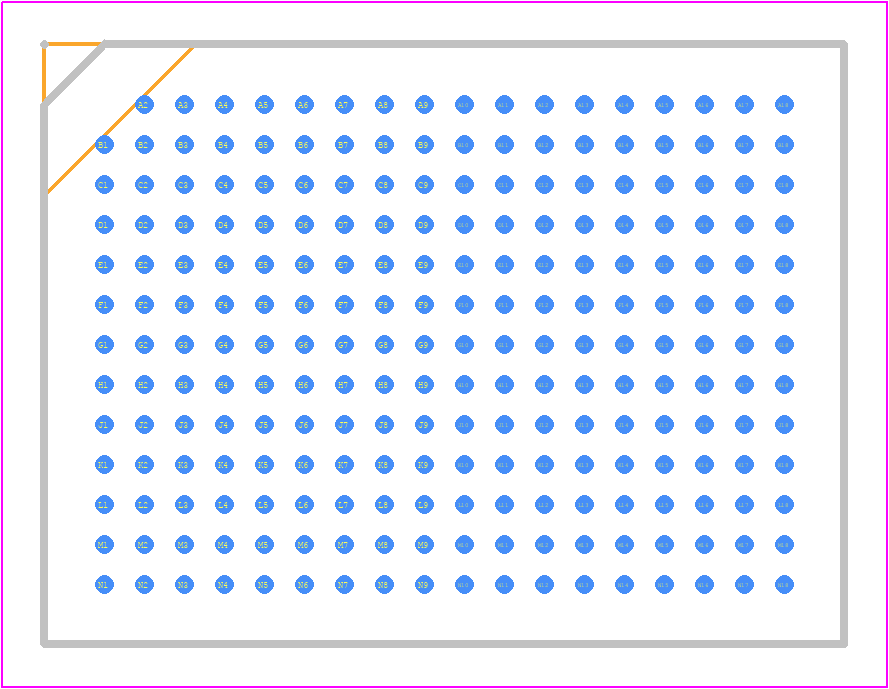

• Package Code:

  BGA

• Package Equivalence Code:

  BGA233,13X18,40

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.834 mm

• Supply Current-Max:

  646 mA

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  15 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
