BU18SD5WG-TL - ROHM Semiconductor

Description: LDO Voltage Regulators 1ch 500mA CMOS LDO Reg 1.7-6.0V 33uA

Download BU18SD5WG-TL Model
Schematic

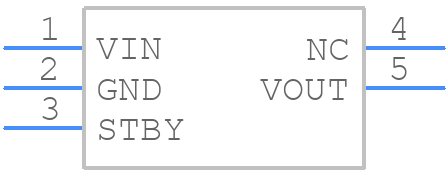

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BU18SD5WG-TL - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5_1
click to zoom
3D Models
BU18SD5WG-TL - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - SSOP5_1
click to zoom

BU18SD5WG-TL Details

  • Manufacturer Part Number:

    BU18SD5WG-TL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Dropout Voltage1-Max:

    0.29 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature TJ-Max:

    125 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.836 V

  • Output Voltage1-Min:

    1.764 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.25 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    2%

  • Width:

    1.6 mm

BU18SD5WG-TL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BU18SD5WG-TL is 1.65V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VIN and GND pins, and to keep the input voltage stable.
  • The maximum output current that the BU18SD5WG-TL can provide is 500mA.
  • To handle thermal considerations, it is recommended to provide a heat sink or a thermal pad to dissipate heat, and to keep the ambient temperature below 85°C.
  • The EN (Enable) pin is used to enable or disable the output voltage. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
