BU2501FV-E2 - ROHM Semiconductor

Description: ROHM BU2501FV-E2, 12-channel 8 bit Serial DAC, 20-Pin SSOP

Download BU2501FV-E2 Model

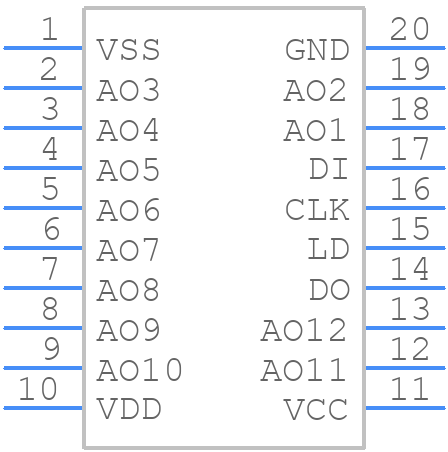

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BU2501FV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - BU2501FV-E2
click to zoom
3D Models
BU2501FV-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - BU2501FV-E2
click to zoom

BU2501FV-E2 Details

  • Manufacturer Part Number:

    BU2501FV-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.59%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    12

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Settling Time-Max:

    250 µs

  • Supply Current-Max:

    1.2 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

BU2501FV-E2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BU2501FV-E2 is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
  • To ensure proper power-on and power-off sequencing, follow the recommended power-up and power-down procedures outlined in the datasheet. This typically involves applying the power supply voltage (VCC) before the input signals, and removing the input signals before removing the power supply voltage.
  • The maximum allowable voltage on the input pins of the BU2501FV-E2 is VCC + 0.3V, as specified in the datasheet. Exceeding this voltage may cause damage to the device or affect its performance.
  • The BU2501FV-E2 is designed for low-frequency applications, and its performance may degrade at high frequencies. If you need to use it in a high-frequency application, consult with ROHM Semiconductor or a qualified engineer to determine its suitability and potential modifications required.
  • To prevent electrostatic discharge (ESD) damage, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials. Additionally, consider implementing ESD protection circuits or devices in your design to protect the BU2501FV-E2 and other sensitive components.
