The recommended operating voltage range for the BU2508FV-E2 is 2.5V to 5.5V.
To ensure the stability of the output voltage, it is recommended to use a ceramic capacitor with a capacitance of 1uF or more between the VOUT and GND pins, and to keep the output voltage line as short as possible.
The maximum output current that the BU2508FV-E2 can provide is 500mA.
To handle thermal design, it is recommended to provide a heat sink or a thermal pad on the PCB, and to keep the ambient temperature below 85°C.
The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU2508FV-E2 Overview

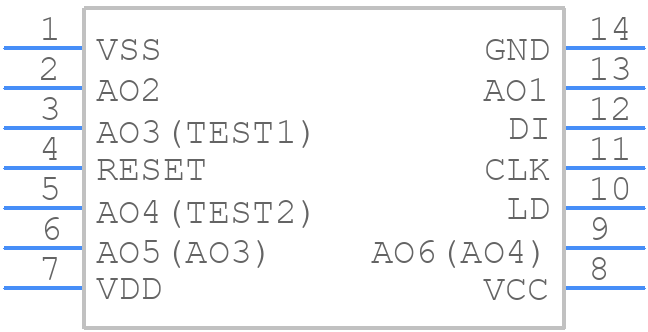

Use the download button to access the BU2508FV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU250,
or try a keyword search, such as Digital to Analog Converters
