BU4052BCFV-E2 - ROHM Semiconductor

Description: High Voltage CMOS Logic ICs<Analog Switch>

Download BU4052BCFV-E2 Model

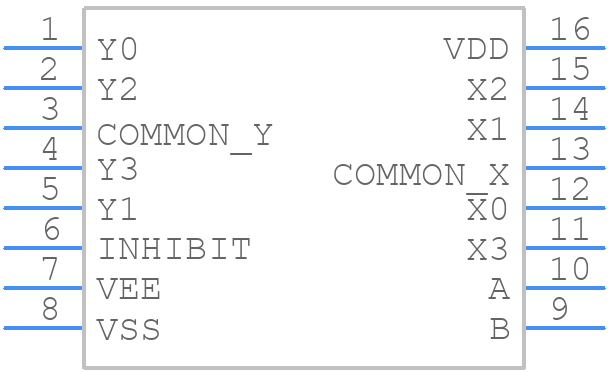

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BU4052BCFV-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-B16 height 1.35
click to zoom
3D Models
BU4052BCFV-E2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SSOP-B16 height 1.35
click to zoom

BU4052BCFV-E2 Details

  • Manufacturer Part Number:

    BU4052BCFV-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e2

  • Length:

    5 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    950 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max (Isup):

    0.015 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    550 ns

  • Switch-on Time-Max:

    550 ns

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BU4052BCFV-E2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BU4052BCFV-E2 is 2.5V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VOUT and GND pins, and to keep the output voltage within the specified range.
  • The maximum output current that the BU4052BCFV-E2 can provide is 500mA.
  • To handle thermal considerations, ensure that the device is mounted on a PCB with a sufficient thermal dissipation area, and that the ambient temperature is within the specified range.
  • The EN (Enable) pin is used to enable or disable the output voltage of the BU4052BCFV-E2. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
