A good PCB layout for the BU4227G-TR involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from the device can help reduce EMI.
To ensure the BU4227G-TR operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended specifications.
The BU4227G-TR has a thermal resistance of 125°C/W. To ensure reliable operation, provide adequate heat sinking, and keep the device away from heat sources. Use thermal interface materials and follow proper PCB design guidelines to minimize thermal resistance.
Yes, the BU4227G-TR is suitable for high-reliability applications. ROHM Semiconductor follows strict quality control and testing procedures to ensure the device meets high-reliability standards. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the BU4227G-TR, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to check for voltage spikes, ringing, or other anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU4227G-TR Overview

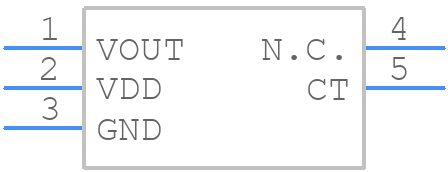

Use the download button to access the BU4227G-TR schematic symbol, PCB footprint, and 3D model.
