The recommended operating temperature range for the BU4926G-TR is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper power-on and power-off sequencing, follow the recommended power-up and power-down procedures outlined in the datasheet. This typically involves applying the power supply voltage (VCC) before the input signals, and removing the input signals before removing the power supply voltage.
The maximum allowable voltage on the input pins of the BU4926G-TR is VCC + 0.3V, as specified in the datasheet. Exceeding this voltage may cause damage to the device or affect its performance.
To ensure ESD protection for the BU4926G-TR, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, consider implementing ESD protection circuits or devices in your design to prevent damage from electrostatic discharge.
For optimal performance and signal integrity, follow the recommended PCB layout and routing guidelines provided in the datasheet or application notes. This typically involves keeping signal traces short, using ground planes, and avoiding noise-sensitive areas.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU4926G-TR Overview

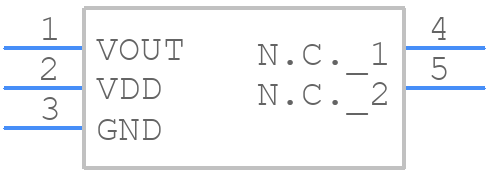

Use the download button to access the BU4926G-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU492,
or try a keyword search, such as Power Management Circuits
