ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal management system to keep the device temperature within the recommended range.
ROHM recommends using a ceramic capacitor with a value of 10uF to 22uF, and an X5R or X7R dielectric, as close to the VIN pin as possible. This helps to filter out noise and ensure stable operation.
Check the input voltage, ensure it's within the recommended range, and verify that the enable pin (EN) is properly connected and driven. Also, check for any short circuits or incorrect connections on the output pins. If the issue persists, consult the application notes and contact ROHM support for further assistance.
The maximum output current capability of the BU7262SNUX-TR is 2A. However, it's essential to consider the thermal performance and ensure that the device is operated within the recommended temperature range to maintain reliability and prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BU7262SNUX-TR Overview

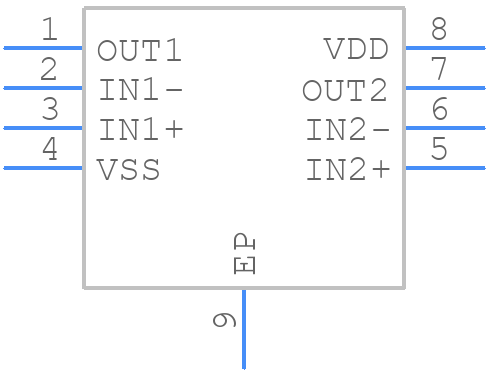

Use the download button to access the BU7262SNUX-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU726,
or try a keyword search, such as Operational Amplifiers
