Part Image

BU931 - STMicroelectronics

Description: Bipolar (BJT) Transistor NPN - Darlington 400 V 15 A 175 W Chassis Mount TO-3 200°C (TJ)

Download BU931 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BU931 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

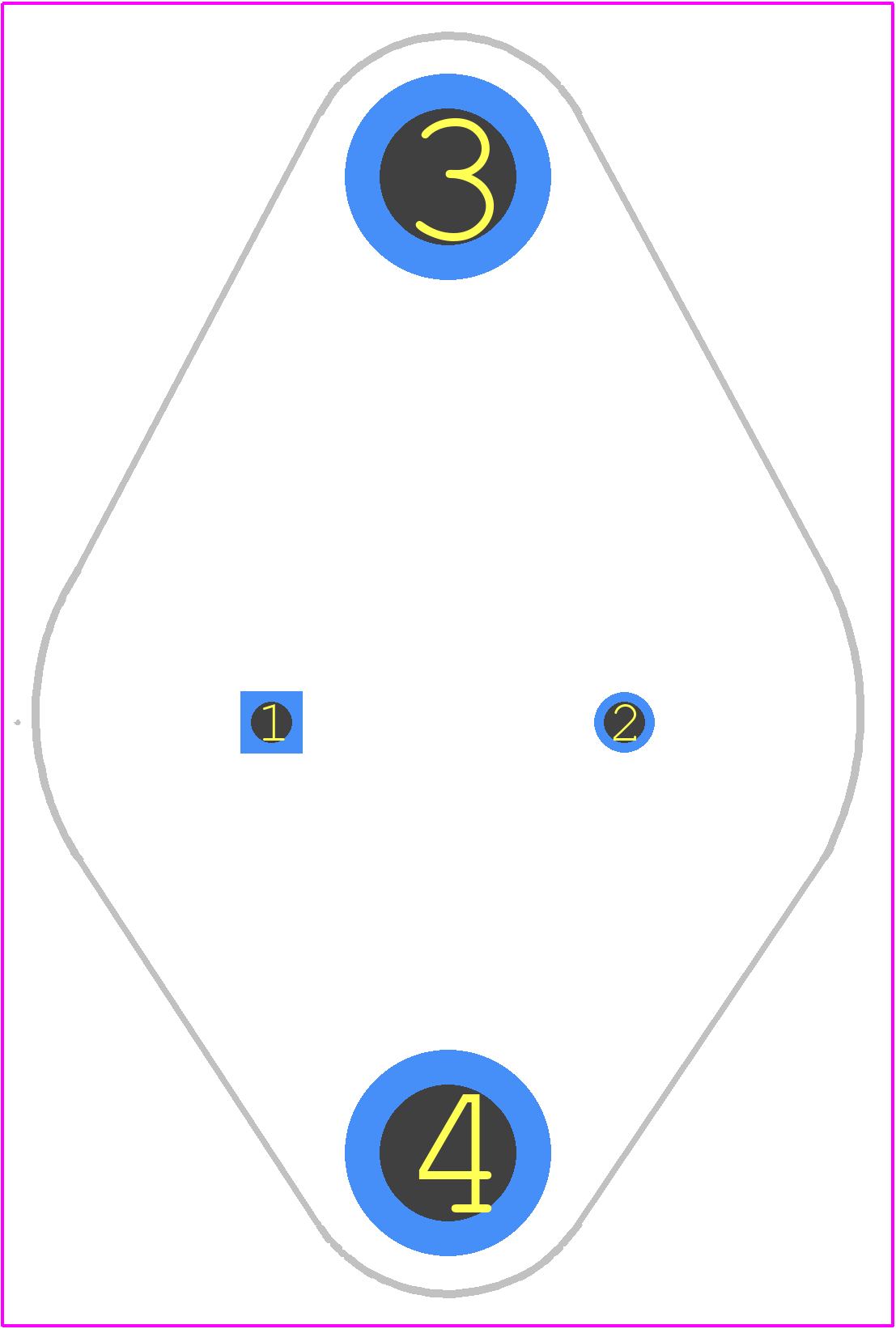

BU931 - STMicroelectronics PCB footprint - Other - Other - TO-3_2025
click to zoom

BU931 Details

  • Manufacturer Part Number:

    BU931

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-220AB

  • Package Description:

    TO-3, 2 PIN

  • Pin Count:

    4

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BUILT-IN BIAS RESISTORS

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    10 A

  • Collector-Emitter Voltage-Max:

    400 V

  • Configuration:

    DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

  • DC Current Gain-Min (hFE):

    300

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e0

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    NPN

  • Power Dissipation Ambient-Max:

    125 W

  • Power Dissipation-Max (Abs):

    175 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • VCEsat-Max:

    1.8 V

BU931 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. Consult the application note AN2352 for more detailed guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's suggested to keep the ambient temperature below 85°C to ensure optimal performance and longevity.
  • Yes, the BU931 is suitable for high-reliability and automotive applications. STMicroelectronics provides a dedicated automotive-grade version, the BU931Q, which meets the AEC-Q100 standard for automotive reliability. Consult the datasheet and application notes for more information.
  • Common issues like oscillation or instability can be caused by poor PCB layout, inadequate input/output capacitors, or incorrect component values. Consult the application note AN2352 for troubleshooting guidelines and check the device's operating conditions, such as input voltage, output current, and temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BU931 Overview

Use the download button to access the BU931 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Power Bipolar Transistors
