BU9458KV-E2 - ROHM Semiconductor

Description: Encoders, Decoders, Multiplexers & Demultiplexers USB Host Aud Decoder AAC/WMA/MP3 + SD

Download BU9458KV-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BU9458KV-E2 - ROHM Semiconductor - PCB symbol
click to zoom

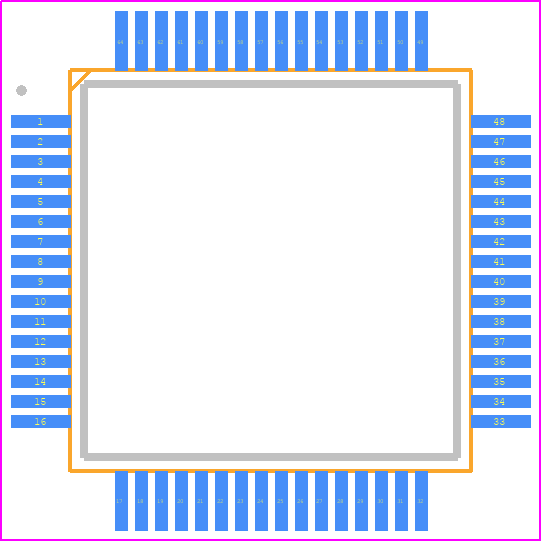

PCB Footprints
BU9458KV-E2 - ROHM Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - BU94604BKV-E2
click to zoom
3D Models
BU9458KV-E2 - ROHM Semiconductor - 3D model - Quad Flat Packages - BU94604BKV-E2
click to zoom

BU9458KV-E2 Details

  • Manufacturer Part Number:

    BU9458KV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G64

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    80 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

BU9458KV-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a large copper area connected to the GND pin to dissipate heat efficiently. A thermal via under the IC is also recommended to improve heat dissipation.
  • To ensure stable operation with a high-capacitance load, ROHM recommends adding a 1-10uF ceramic capacitor between the VCC and GND pins, and a 1-10nF ceramic capacitor between the output and GND pins.
  • The maximum allowed voltage on the input pins is 6V, which is higher than the recommended operating voltage of 5V. However, it's recommended to operate within the recommended voltage range to ensure reliable operation.
  • ROHM recommends using ESD protection devices such as TVS diodes or ESD arrays on the input and output lines to protect the BU9458KV-E2 from electrostatic discharge.
  • ROHM recommends a soldering temperature of 260°C (max) and a soldering time of 10 seconds (max) to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BU9458KV-E2 Overview

Use the download button to access the BU9458KV-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU945, or try a keyword search, such as Other Consumer ICs
