BU9S-153R15BL - COILCRAFT

Description: COILCRAFT - BU9S-153R15BL - FILTER, COMMON MODE, 15MH, 0.15A

Download BU9S-153R15BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

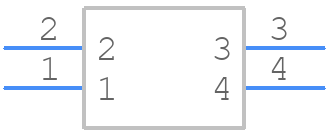

BU9S-153R15BL - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

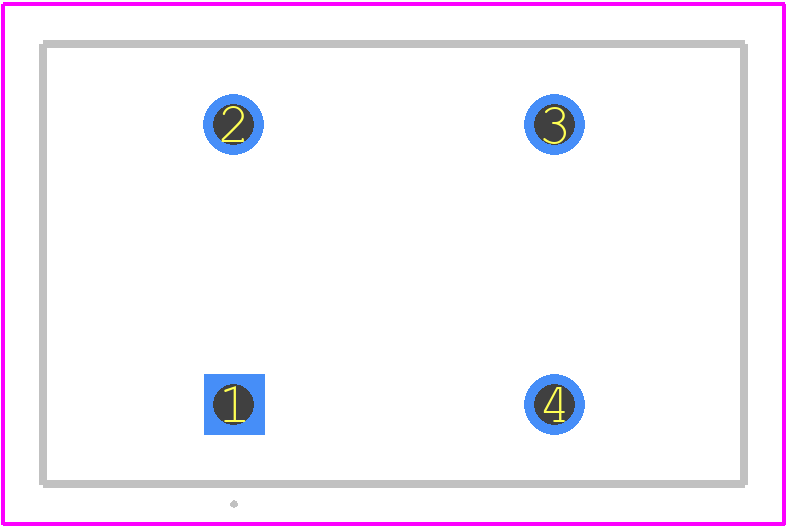

BU9S-153R15BL - COILCRAFT PCB footprint - Other - Other - BU9S-153R15BL-1
click to zoom
3D Models
BU9S-153R15BL - COILCRAFT - 3D model - Other - BU9S-153R15BL-1
click to zoom

BU9S-153R15BL Details

  • Manufacturer Part Number:

    BU9S-153R15BL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.79

  • DC Resistance-Max:

    5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    17 mm

  • Inductance:

    15000 µH

  • Length:

    17.5 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    105700 OHM Ω

  • Packing Method:

    TRAY

  • Rated Current:

    0.15 A

  • Screening Level:

    MIL-STD-202

BU9S-153R15BL Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BU9S-153R15BL is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a non-solder mask defined (NSMD) pad and a 0.5 mm keep-out area around the pad.
  • The BU9S-153R15BL is rated for operation up to 125°C, but derating is required above 80°C. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • Handle the BU9S-153R15BL by the body, avoiding touching the leads or core. Use a vacuum pickup or tweezers to place the component on the PCB. Avoid bending or flexing the leads during assembly.
  • The self-resonant frequency (SRF) of the BU9S-153R15BL is approximately 250 MHz, but this can vary depending on the specific application and PCB layout.
  • The BU9S-153R15BL is rated for a maximum current of 1.53 A, but it's recommended to consult the datasheet and application notes for specific guidance on current handling and derating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BU9S-153R15BL Overview

Use the download button to access the BU9S-153R15BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BU9S-, or try a keyword search, such as Data Line Filters

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
