Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The output capacitor value depends on the specific application and desired performance. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the maximum output voltage. TI also provides a capacitor selection guide in the datasheet.
The maximum input voltage is 5.5V, but it's recommended to operate the device within the specified input voltage range (1.8V to 5V) for optimal performance and to prevent damage to the device.
The BUF01900AIPWR is rated for operation up to 125°C, but it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in high-temperature environments.
To ensure EMC, follow good design practices, such as using a solid ground plane, keeping traces short and shielded, and using electromagnetic interference (EMI) filters or shielding if necessary. TI also provides EMC guidelines in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF01900AIPWR Overview

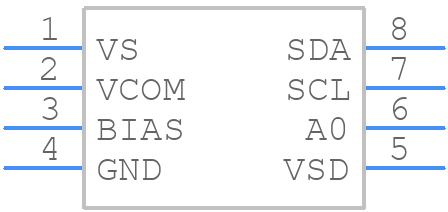

Use the download button to access the BUF01900AIPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF01,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
