Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, ensure that the input and output traces are short and well-matched to minimize signal reflections.
The output capacitor value depends on the specific application requirements, such as output voltage, current, and ripple. A general rule of thumb is to use a capacitor with a value between 1uF to 10uF, with a voltage rating that exceeds the output voltage. However, it's recommended to consult the datasheet and application notes for more specific guidance.
The BUF04701AIPWRG4 has an absolute maximum input voltage rating of 6V. Exceeding this voltage can cause damage to the device. However, the recommended operating input voltage range is 2.7V to 5.5V.
The BUF04701AIPWRG4 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure that the device operates within the recommended temperature range.
Proper biasing is critical for the BUF04701AIPWRG4. Ensure that the input voltage is within the recommended range, and the output voltage is set to the desired level using a resistive divider or other voltage-setting circuitry. Consult the datasheet and application notes for specific guidance on biasing and voltage-setting.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF04701AIPWRG4 Overview

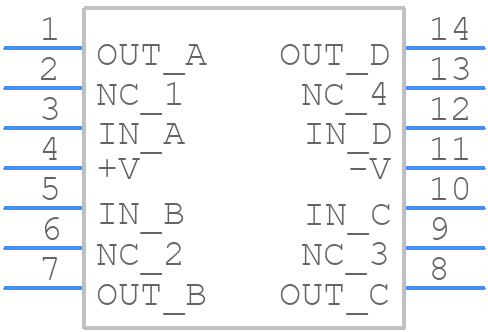

Use the download button to access the BUF04701AIPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF04,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
