SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1.6 V/us
Supply Current-Max:
7.5 mA
Supply Voltage Limit-Max:
19 V
Supply Voltage-Nom (Vsup):
18 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
BUF05704AIPWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
The BUF05704AIPWPR has a high power dissipation, so it's crucial to provide adequate thermal management. Use a heat sink, ensure good airflow, and consider using thermal interface materials to reduce thermal resistance.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
No, the BUF05704AIPWPR is a buffer amplifier, not a voltage regulator. It's designed to provide a high-current, low-impedance output, but it doesn't regulate the output voltage.
To ensure stability, follow the recommended component values and PCB layout, and consider adding a small capacitor (e.g., 10nF) between the output and ground to prevent oscillations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF05704AIPWPR Overview

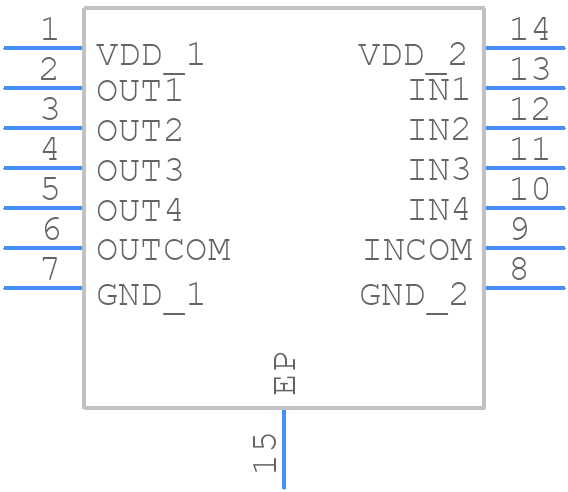

Use the download button to access the BUF05704AIPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF05,
or try a keyword search, such as Buffer Amplifiers
