BUF08630RGWR - Texas Instruments

Description: 8-CH Gamma-Voltage Generator w/Adjustable Gain Vcom & 1/2 AVDD Topology

Download BUF08630RGWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

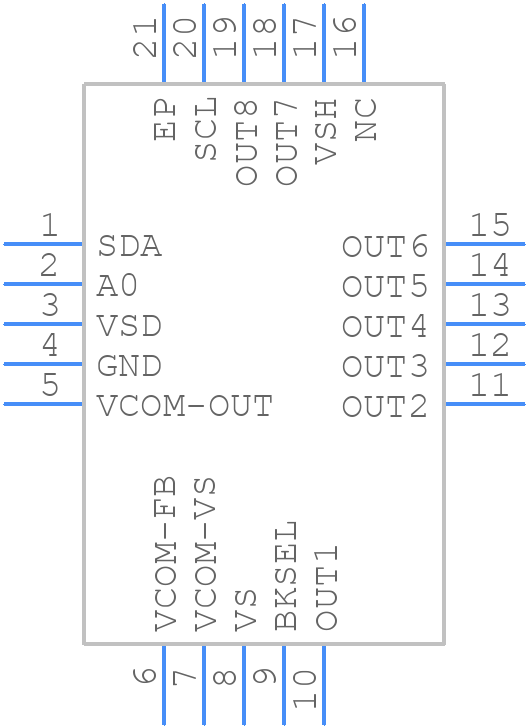

BUF08630RGWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BUF08630RGWR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGW(S-PVQFN-N20)
click to zoom
3D Models
BUF08630RGWR - Texas Instruments - 3D model - Quad Flat No-Lead - RGW(S-PVQFN-N20)
click to zoom

BUF08630RGWR Details

  • Manufacturer Part Number:

    BUF08630RGWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

BUF08630RGWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and keeping the input and output traces separate to reduce noise and crosstalk.
  • The output capacitor value depends on the specific application and desired performance. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. However, it's recommended to consult the datasheet and application notes for more specific guidance.
  • The BUF08630RGWR has an operating temperature range of -40°C to 125°C. However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this range.
  • Yes, the BUF08630RGWR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and has been tested to ensure reliability in harsh environments. However, it's essential to consult the datasheet and application notes for specific guidance on using this device in these applications.
  • The BUF08630RGWR has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BUF08630RGWR Overview

Use the download button to access the BUF08630RGWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF08, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
