SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
9 V
Supply Voltage-Nom (Vsup):
18 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
BUF08832AIPWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
The output capacitor value depends on the desired output impedance, stability, and noise performance. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF. However, it's recommended to consult the datasheet and application notes for specific guidance.
The BUF08832AIPWPR has an operating temperature range of -40°C to 125°C. However, it's essential to consider the thermal design and heat dissipation to ensure reliable operation within this range.
Yes, the BUF08832AIPWPR can be used as a unity-gain buffer. However, this may affect the device's stability, noise performance, and output impedance. It's recommended to consult the datasheet and application notes for specific guidance on unity-gain buffer configurations.
The BUF08832AIPWPR has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent damage. Additionally, consider adding external ESD protection devices, such as TVS diodes, to ensure robust protection.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
BUF08832AIPWPR Overview

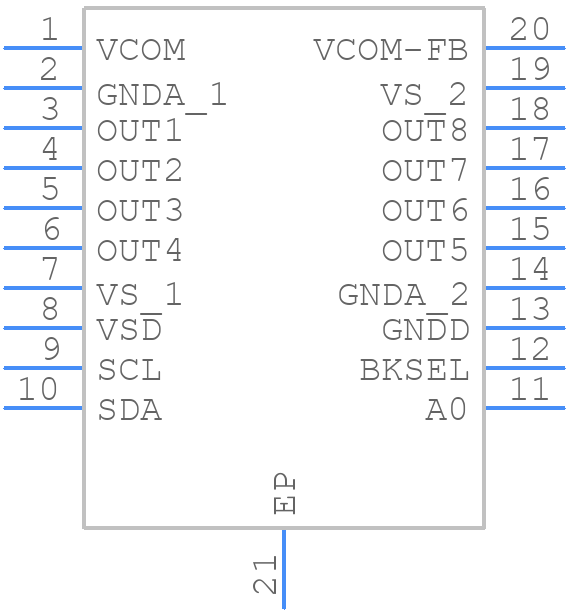

Use the download button to access the BUF08832AIPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF08,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
