SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Slew Rate-Nom:
1.6 V/us
Supply Current-Max:
9 mA
Supply Voltage Limit-Max:
24 V
Supply Voltage-Nom (Vsup):
18 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
BUF11705AIPWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the BUF11705AIPWPR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors.
The BUF11705AIPWPR has a high power dissipation, so thermal management is crucial. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended PCB layout guidelines. You can also use thermal interface materials (TIMs) to improve heat transfer between the device and the heat sink.
Although the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the device.
Yes, the BUF11705AIPWPR can be used as a unity-gain buffer. However, it's essential to ensure that the input signal is within the device's common-mode range and that the output is properly terminated to prevent oscillations.
The output capacitor value depends on the specific application and the desired output impedance. A general rule of thumb is to use a capacitor value between 10nF and 100nF. However, it's recommended to consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF11705AIPWPR Overview

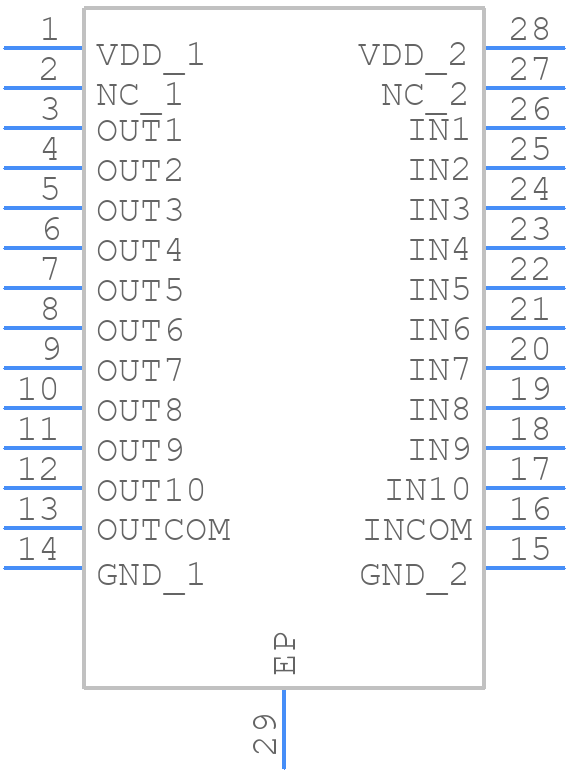

Use the download button to access the BUF11705AIPWPR schematic symbol, PCB footprint, and 3D model.
