BUF12800AIPWP - Texas Instruments

Description: 12-CH Gamma-Voltage Generator

Download BUF12800AIPWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

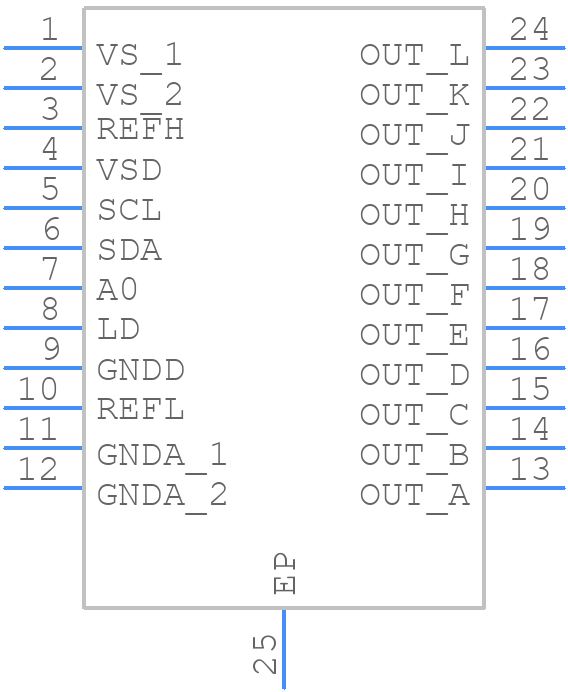

BUF12800AIPWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
BUF12800AIPWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
BUF12800AIPWP - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

BUF12800AIPWP Details

  • Manufacturer Part Number:

    BUF12800AIPWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES A 7V TO 18V SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    7 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

BUF12800AIPWP Frequently Asked Questions (FAQs)

  • A good PCB layout for BUF12800AIPWP involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-impedance power supply and to minimize the distance between the BUF12800AIPWP and the load.
  • The output capacitor should be chosen based on the desired output impedance, frequency response, and load requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the BUF12800AIPWP.
  • The BUF12800AIPWP is rated for operation from -40°C to 125°C, but the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range of -20°C to 85°C for optimal performance.
  • The BUF12800AIPWP requires a bias voltage of 2.5V to 5.5V on the VCC pin, and a bias current of 1mA to 10mA. The device should be biased using a low-noise, low-impedance power supply, and the input voltage should be within the recommended range for optimal performance.
  • The maximum input voltage that can be applied to BUF12800AIPWP is 5.5V. Exceeding this voltage may damage the device or affect its performance.
