- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BUF12800AIPWPR
- Part Number BUF12800AIPWPR
- Manufacturer Texas Instruments
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PWP (R-PDSO-G24)_2
- Released Date Jun 1, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BUF12800AIPWPR Details
-
Manufacturer Part Number:
BUF12800AIPWPR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Pin Count:
24
-
Country Of Origin:
Malaysia, Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
BUF12800AIPWPR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the BUF12800AIPWPR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
-
To ensure the BUF12800AIPWPR operates within the recommended operating conditions, verify that the input voltage (VIN) is within the specified range (2.7V to 5.5V), the output current (IOUT) does not exceed the maximum rating (1A), and the junction temperature (TJ) remains below the maximum rating (150°C). Also, ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating.
-
The typical output impedance of the BUF12800AIPWPR is around 0.5 ohms. This is specified in the datasheet as the output impedance (ZOUT) and is measured at a frequency of 100 kHz. However, it's essential to note that the output impedance can vary depending on the operating conditions, such as input voltage and output current.
-
While the BUF12800AIPWPR can provide a stable output voltage, it is not intended to be used as a voltage regulator. The device is designed as a high-current, low-dropout buffer amplifier, and its output voltage is determined by the input voltage. If you need a voltage regulator, consider using a dedicated voltage regulator IC, such as the TPS63050 or TPS73701, which are designed for voltage regulation applications.
-
The BUF12800AIPWPR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to further protect the device and surrounding components.
Trust Checks
Community Provided
System Verified
Community Approved
BUF12800AIPWPR Overview

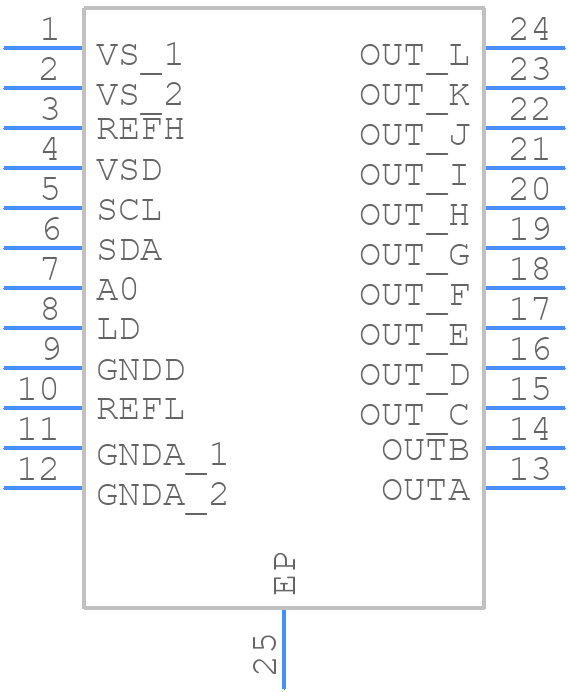

Use the download button to access the BUF12800AIPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF12,
or try a keyword search, such as Other Signal Circuits
