Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-matched and impedance-controlled.
The BUF12840AIRGET has a high power dissipation, so it's crucial to implement proper thermal management. Use a heat sink or thermal pad, and ensure good airflow around the device. The datasheet provides thermal resistance values to help with thermal design. Additionally, consider using a thermal interface material to improve heat transfer.
Although the datasheet specifies a maximum input voltage of 5.5V, it's essential to consider the absolute maximum ratings, which include a maximum input voltage of 6.5V. However, operating the device at this voltage may reduce its lifespan. It's recommended to operate the device within the recommended operating conditions for optimal performance and reliability.
The BUF12840AIRGET requires a specific bias voltage to operate correctly. Ensure that the VCC pin is connected to a stable voltage source, and the VREF pin is connected to a suitable reference voltage. The datasheet provides guidelines for biasing the device, and it's essential to follow these recommendations for optimal performance.
The BUF12840AIRGET has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Ensure that the device is handled in an ESD-controlled environment, and use ESD-protective packaging and materials. Additionally, consider adding external ESD protection devices if the application requires it.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF12840AIRGET Overview

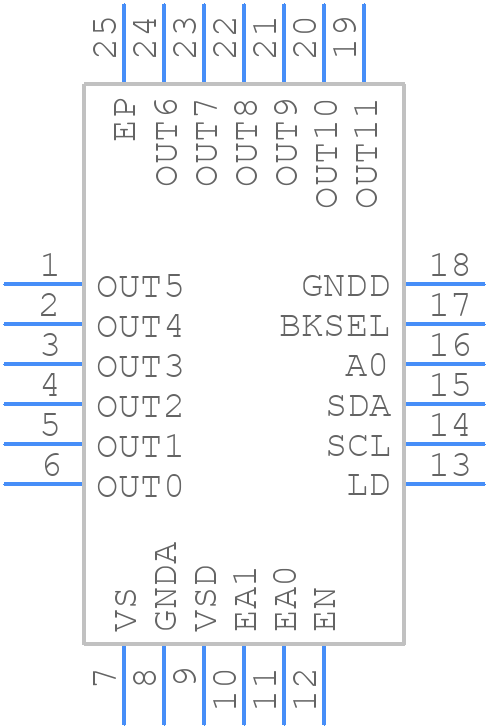

Use the download button to access the BUF12840AIRGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF12,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
