A good PCB layout for the BUF16821AIPWPR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The output capacitor selection depends on the desired output impedance, stability, and noise performance. A general guideline is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage. TI provides guidance on capacitor selection in the datasheet and application notes.
The maximum power dissipation for the BUF16821AIPWPR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature. However, this value can be derated for higher temperatures.
To ensure stability, follow the recommended PCB layout, use a sufficient output capacitor, and ensure the input and output impedances are matched. Additionally, avoid using long input traces, and decouple the input with a capacitor to prevent oscillations.
The typical input impedance of the BUF16821AIPWPR is around 10kΩ, but it can vary depending on the frequency and operating conditions. It's essential to consider the input impedance when designing the input stage and selecting the input capacitor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF16821AIPWPR Overview

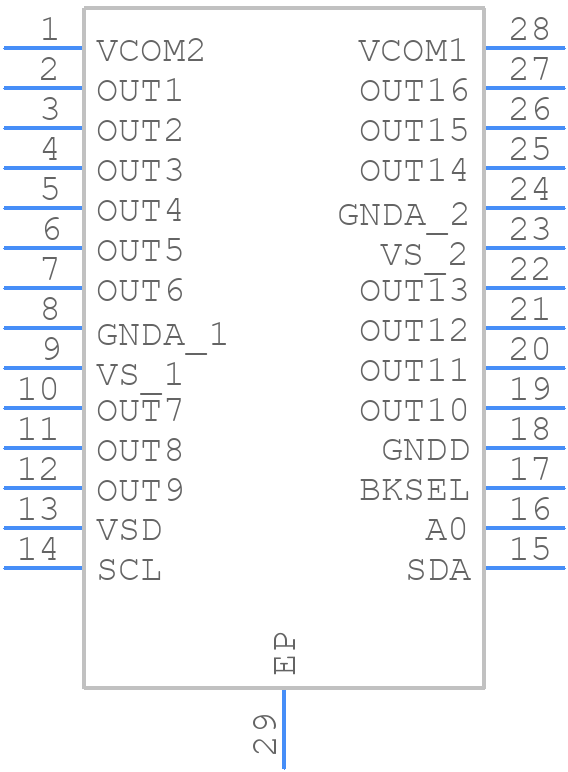

Use the download button to access the BUF16821AIPWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF16,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
