A good PCB layout for BUF16821AIPWPRQ1 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor (COUT) to minimize ringing and oscillations.
The output capacitor (COUT) should be chosen based on the desired output impedance, output voltage, and load current. A general guideline is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage. It's also important to consider the capacitor's ESR, as a low ESR can help reduce ringing and oscillations.
The maximum input voltage that BUF16821AIPWPRQ1 can handle is 5.5V. Exceeding this voltage can cause damage to the device or affect its performance.
To ensure stability and prevent oscillations, it's essential to follow the recommended PCB layout, use a suitable output capacitor (COUT), and ensure that the input and output traces are properly terminated. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be within the specified range.
The typical power consumption of BUF16821AIPWPRQ1 is around 1.5mA, but this can vary depending on the input voltage, output load, and operating frequency. It's essential to consider the power consumption in the system design to ensure proper thermal management and power supply design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF16821AIPWPRQ1 Overview

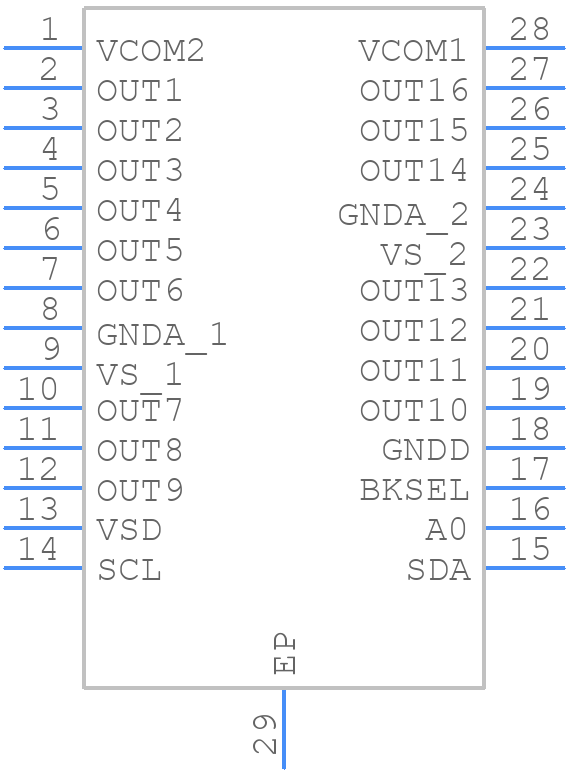

Use the download button to access the BUF16821AIPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF16,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
