A good PCB layout for BUF634AIDDAR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The output capacitor should be chosen based on the desired output impedance, output voltage, and output current. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage. X5R or X7R ceramic capacitors are good options.
The maximum power dissipation of BUF634AIDDAR is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. The device can dissipate up to 2.5W in the DD package, and up to 1.5W in the DBV package.
To ensure stability and prevent oscillations, it's recommended to use a minimum output capacitance of 10nF, and to place a 1kΩ to 10kΩ resistor in series with the output capacitor. Additionally, the input and output traces should be kept short and symmetrical, and the device should be decoupled with a 0.1uF capacitor.
The recommended input voltage range for BUF634AIDDAR is 2.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUF634AIDDAR Overview

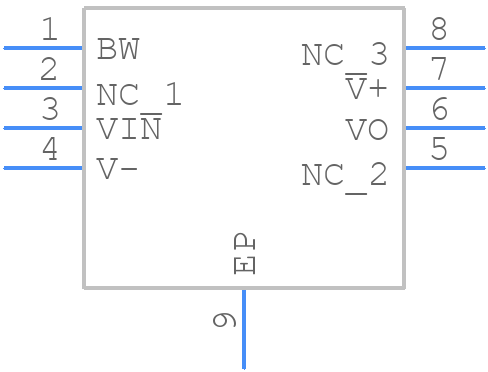

Use the download button to access the BUF634AIDDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BUF63,
or try a keyword search, such as Buffer Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
