The maximum operating junction temperature of BUK9K35-60RAX is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation and to prevent thermal runaway.
To ensure the safe operating area (SOA) of BUK9K35-60RAX, you should consider the maximum voltage, current, and power dissipation ratings. Additionally, you should also consider the thermal management, PCB layout, and heat sink design to prevent overheating and thermal runaway.
The recommended gate resistor value for BUK9K35-60RAX depends on the specific application and switching frequency. A general guideline is to use a gate resistor value between 10 ohms to 100 ohms to ensure proper switching and to prevent oscillations.
Yes, BUK9K35-60RAX is suitable for high-frequency switching applications up to 100 kHz. However, you should consider the switching losses, gate charge, and parasitic inductances to ensure reliable operation and to prevent overheating.
To handle the parasitic inductances and capacitances of BUK9K35-60RAX, you should consider the PCB layout, component placement, and decoupling capacitors. You should also use a gate driver with a low output impedance and a high current capability to minimize the effects of parasitic inductances and capacitances.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BUK9K35-60RAX Overview

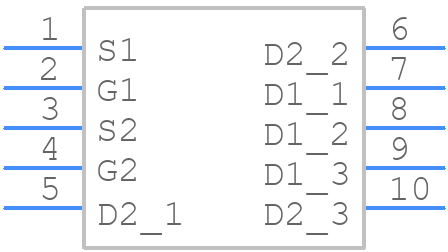

Use the download button to access the BUK9K35-60RAX schematic symbol, PCB footprint, and 3D model.
