BUK9K6R8-40EX - Nexperia

Description: MOSFETs BUK9K6R8-40E/SOT1205/LFPAK56D

Download BUK9K6R8-40EX Model

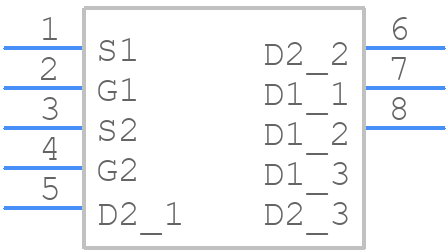

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BUK9K6R8-40EX - Nexperia PCB footprint - Other - Other - SOT1205_2022
click to zoom
3D Models
BUK9K6R8-40EX - Nexperia  - 3D model - Other - SOT1205_2022
click to zoom

BUK9K6R8-40EX Details

  • Manufacturer Part Number:

    BUK9K6R8-40EX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8, 4 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT1205

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5.6

  • Additional Feature:

    AVALANCHE RATED

  • Avalanche Energy Rating (Eas):

    125 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.0072 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    202 pF

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    4

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    64 W

  • Pulsed Drain Current-Max (IDM):

    265 A

  • Reference Standard:

    AEC-Q101; IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

BUK9K6R8-40EX Frequently Asked Questions (FAQs)

  • The SOA is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general guideline, the SOA is typically limited by the device's thermal capabilities, and it's recommended to consult with Nexperia's application notes or contact their support team for more information.
  • To ensure the MOSFET is fully turned on, apply a gate-source voltage (Vgs) that is at least 10V higher than the threshold voltage (Vth). For the BUK9K6R8-40EX, Vth is around 2-4V, so a Vgs of 12-15V is recommended. To fully turn off the MOSFET, ensure Vgs is less than Vth. Additionally, consider using a gate driver with a high current capability to quickly charge and discharge the gate capacitance.
  • For optimal thermal performance, use a PCB layout that minimizes thermal resistance. This includes using a large copper area for the drain pad, using thermal vias to dissipate heat, and keeping the MOSFET away from other heat sources. Additionally, consider using a heat sink or thermal interface material to further reduce thermal resistance. Consult Nexperia's application notes or PCB design guides for more information.
  • To protect the MOSFET from overvoltage, use a voltage clamp or a transient voltage suppressor (TVS) diode to limit the voltage across the device. For overcurrent protection, consider using a current sense resistor and a comparator to detect excessive currents. Additionally, ensure the MOSFET is operated within its safe operating area (SOA) to prevent damage from excessive power dissipation.
  • The recommended gate drive and gate resistor values depend on the specific application and switching frequency. As a general guideline, use a gate resistor (Rg) between 10-100 ohms to limit the gate current and prevent oscillations. The gate drive voltage should be sufficient to fully turn on the MOSFET, typically 10-15V for the BUK9K6R8-40EX. Consult Nexperia's application notes or gate drive IC datasheets for more information.
