- Part Number BUY69A
- Manufacturer STMicroelectronics
- Pin Count 4
- Part Category Transistor BJT NPN
- Package Category Other

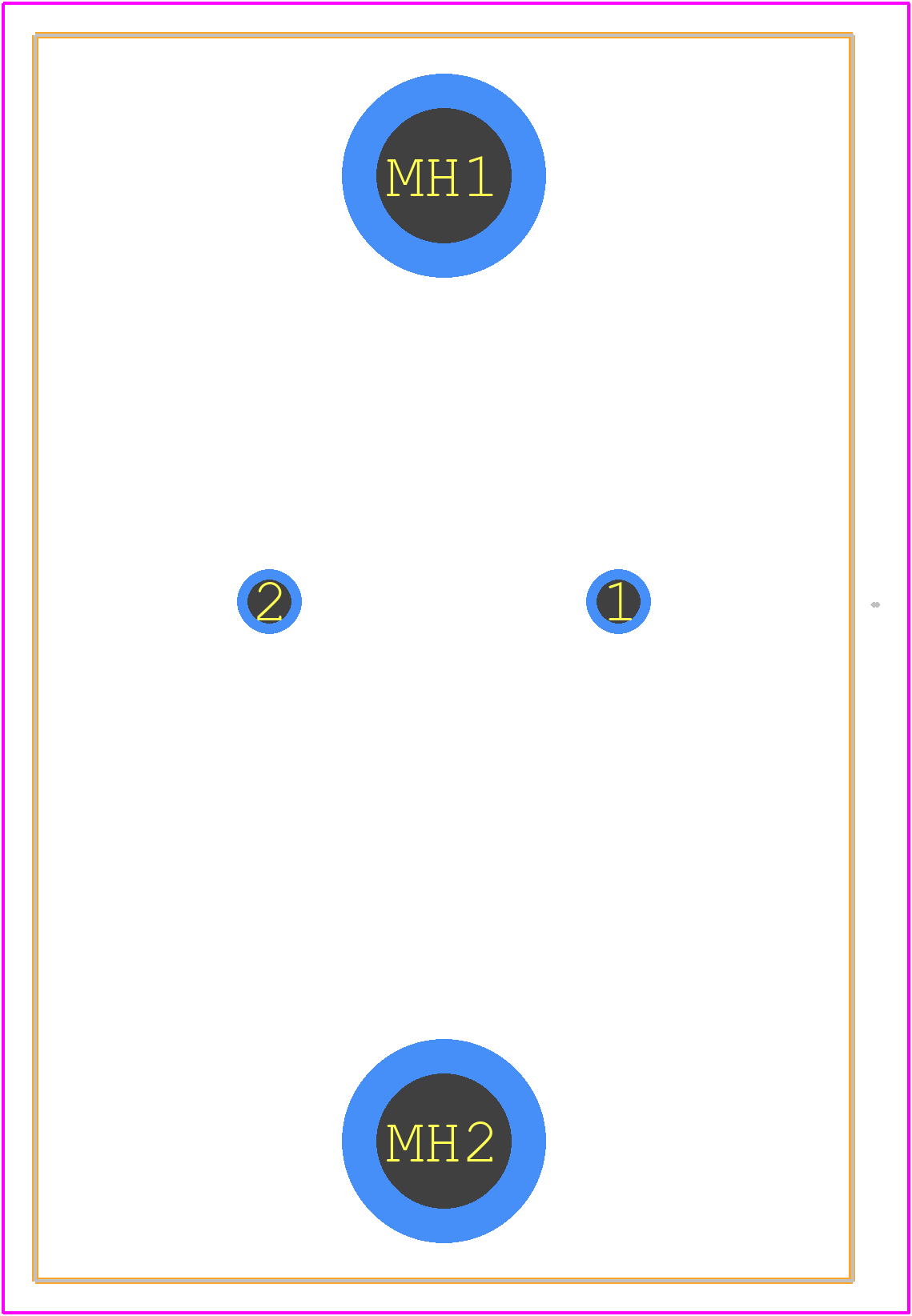

- Footprint Name Other - BUY69A-2
- Released Date Nov 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
BUY69A Details
-
Manufacturer Part Number:
BUY69A
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
TO-204AA
-
Package Description:
METAL, TO-3, 2 PIN
-
Pin Count:
2
-
ECCN Code:
EAR99
-
HTS Code:
8541.29.00.95
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Case Connection:
COLLECTOR
-
Collector Current-Max (IC):
10 A
