A good PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, and to use thermal vias to dissipate heat to the other layers. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink or thermal interface material to reduce thermal resistance.
The maximum allowable voltage for the input pins is the same as the maximum supply voltage (VCC), which is 5.5V. Exceeding this voltage may cause damage to the device.
To handle ESD protection, follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The BV1HD045EFJ-CE2 has built-in ESD protection, but it's still important to follow proper handling procedures.
The recommended storage condition for the BV1HD045EFJ-CE2 is in a dry, cool place, away from direct sunlight and moisture. The storage temperature should be between -40°C and 125°C, and the humidity should be below 60%.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BV1HD045EFJ-CE2 Overview

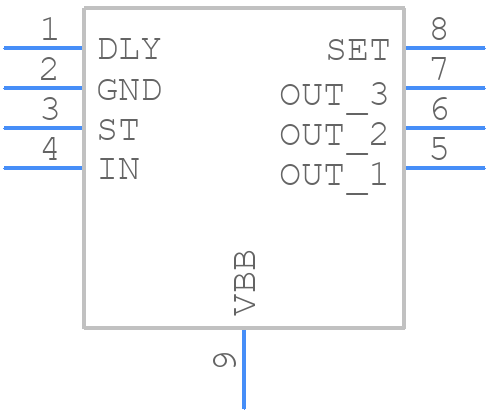

Use the download button to access the BV1HD045EFJ-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BV1HD,
or try a keyword search, such as Peripheral Drivers
