BV1LB150FJ-CE2 - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution 1ch Low-side swtch 42V; 10A; SOP-J8

Download BV1LB150FJ-CE2 Model

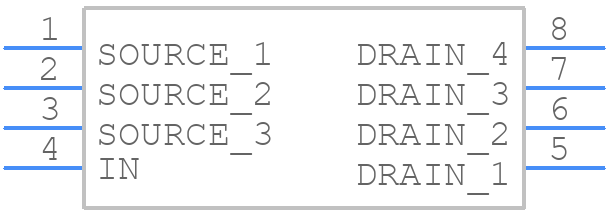

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BV1LB150FJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8
click to zoom
3D Models
BV1LB150FJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP-J8
click to zoom

BV1LB150FJ-CE2 Details

  • Manufacturer Part Number:

    BV1LB150FJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL

  • Driver Number of Bits:

    1

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    6.5 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    80 µs

  • Turn-on Time:

    80 µs

  • Width:

    3.9 mm

BV1LB150FJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended derating guidelines for high-temperature operation.
  • The maximum allowable voltage for the input pins is 5.5V, exceeding which may cause damage to the device.
  • Yes, the BV1LB150FJ-CE2 is suitable for switching regulator applications, but ensure that the device is properly bypassed and the layout is optimized for high-frequency operation.
  • Follow proper ESD handling procedures, use ESD-protected workstations, and consider adding external ESD protection devices if necessary.
