BV1LE250EFJ-CE2 - ROHM Semiconductor

Description: Built-in Dual TSD*1 ■ AEC-Q100 Qualified*2 ■ Built-in Over Current Protection Function(OCP) ■ Built-in Active Clamp Function ■ Direct Control Enabled from CMOS Logic IC, etc. ■ On Resistance RDS(ON) = 250 mΩ (Typ) (when VIN = 5 V, IOUT = 0.5 A, Tj = 25 C) ■ Monolithic Power Management IC with the Control Block (CMOS) and Power MOS FET Mounted on a Single Chip *1 This IC has thermal shutdown (Junction temperature detect) and ΔTj Protection (Power-MOS steep temperature rising detect). *2 Grade1

Download BV1LE250EFJ-CE2 Model

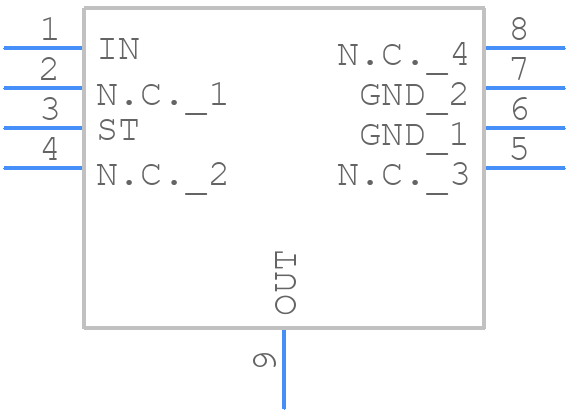

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BV1LE250EFJ-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSOP-J8-4
click to zoom
3D Models
BV1LE250EFJ-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSOP-J8-4
click to zoom

BV1LE250EFJ-CE2 Details

  • Manufacturer Part Number:

    BV1LE250EFJ-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BV1LE250EFJ-CE2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • ROHM recommends following the derating guidelines in the datasheet, ensuring proper heat sinking, and using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/mK.
  • Although the datasheet specifies a maximum input voltage of 250V, it's recommended to limit the input voltage to 200V to ensure reliable operation and prevent damage to the device.
  • Yes, the BV1LE250EFJ-CE2 is suitable for high-frequency switching applications up to 100 kHz. However, ensure proper PCB layout, decoupling, and snubber circuits to minimize ringing and EMI.
  • ROHM recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded.
