A recommended PCB layout for optimal thermal performance would be to have a large copper area on the bottom layer connected to the thermal pad, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it is recommended to derate the maximum junction temperature (Tj) by 10°C to 15°C to account for temperature variations. Additionally, ensure that the device is properly heatsinked and that the thermal interface material is suitable for high-temperature operation.
The recommended soldering profile for the BV2HC045EFU-CE2 is a peak temperature of 260°C, with a dwell time of 30 seconds to 60 seconds. The device should be soldered using a no-clean or water-soluble flux, and the soldering iron should be set to a temperature of 350°C to 400°C.
The device should be stored in a dry, cool place, away from direct sunlight and moisture. During shipping, the device should be packaged in an electrostatic discharge (ESD) protective bag or wrap, and should be handled using ESD-safe materials and tools.
The BV2HC045EFU-CE2 is manufactured according to ROHM Semiconductor's quality and reliability standards, which include compliance with IEC, JEDEC, and AEC-Q101 standards. The device is also subject to rigorous testing and inspection to ensure high reliability and quality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BV2HC045EFU-CE2 Overview

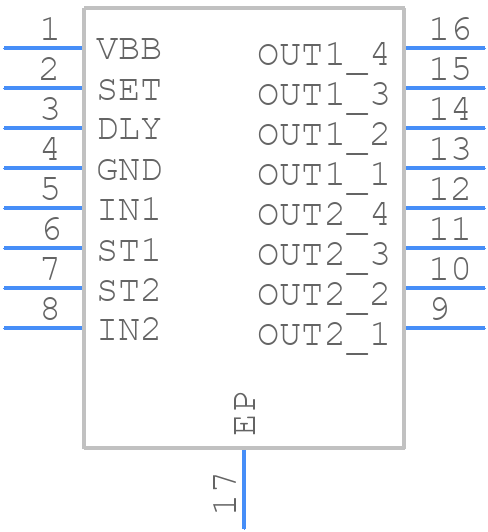

Use the download button to access the BV2HC045EFU-CE2 schematic symbol, PCB footprint, and 3D model.
