- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for BX0033
- Part Number BX0033
- Manufacturer Bulgin
- Pin Count 2
- Part Category Undefined or Miscellaneous
- Package Category Other
- Footprint Name Other - BX0033
- Released Date Jun 8, 2018
- Last Modified Date May 17, 2024 12:14 PM UTC
- Pinout / Pin List Click Here (Member Only)
BX0033 Details
-
Manufacturer Part Number:
BX0033
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Bulgin
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
BX0033 Frequently Asked Questions (FAQs)
-
The recommended torque for the BX0033 connector is 0.5 Nm to 1.5 Nm (4.4 lbf.in to 13.3 lbf.in).
-
Yes, the BX0033 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
-
Yes, the BX0033 connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G acceleration.
-
The operating temperature range of the BX0033 connector is -40°C to 125°C (-40°F to 257°F).
-
The BX0033 connector is designed to be compatible with other connectors that meet the IEC 61076-2-011 standard, but compatibility should be verified before use.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
BX0033 Overview

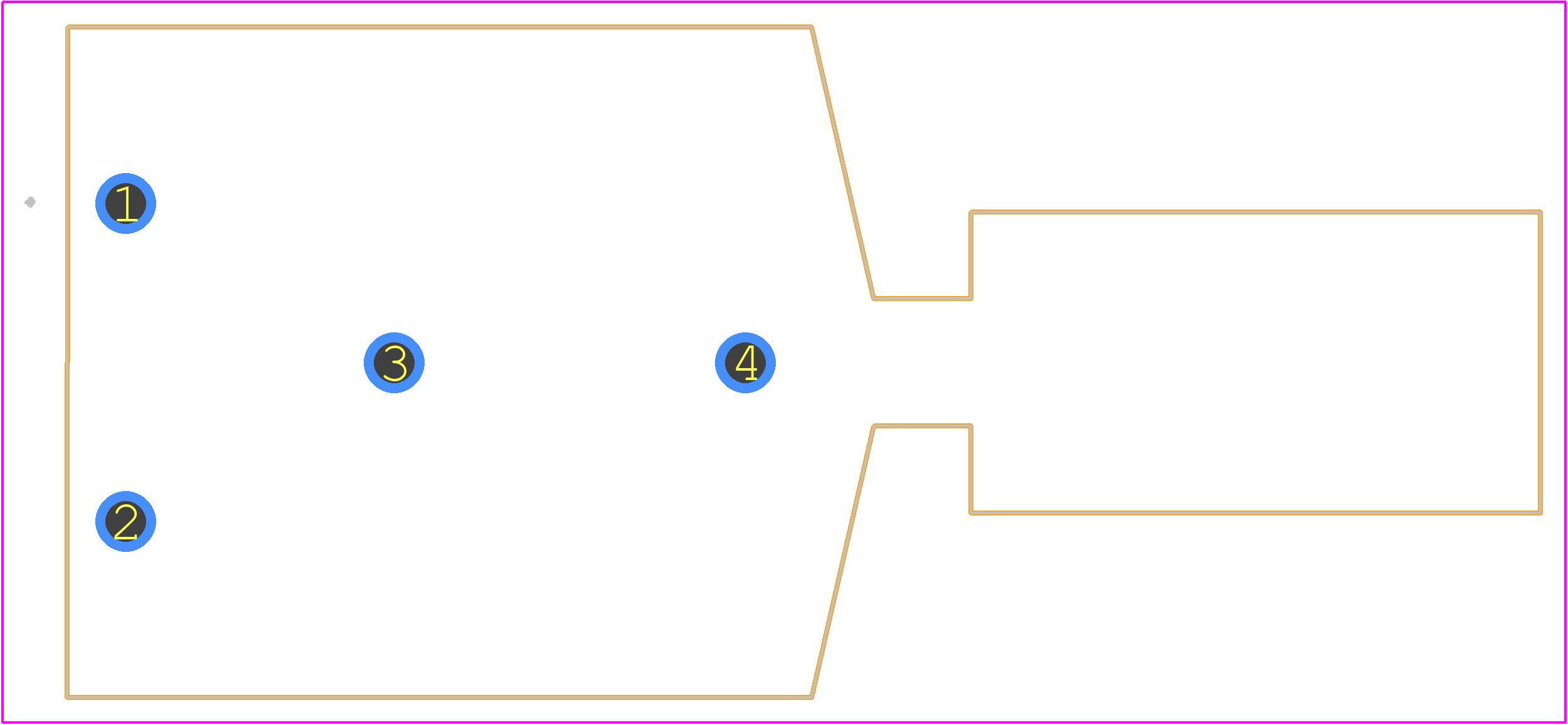

Use the download button to access the BX0033 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BX003,
or try a keyword search, such as Headers and Edge Type Connectors
About Bulgin
Bulgin is a leading manufacturer of environmentally sealed connectors, fuse holders, and switches. They provide high-quality, ruggedized components for a wide range of industries, including industrial automation, transportation, marine, and outdoor electronics.
Bulgin offers a diverse range of products designed to withstand harsh environments and demanding applications. Their portfolio includes circular connectors, data connectors, power connectors, fuse holders, battery holders, switches, and more.
