Part Image

BZ015A503ZLB - Kyocera AVX

Description: AVX 50000µF Electric Double Layer Capacitor -20 → +80% Tolerance A Series 5.5V dc Surface Mount

Download BZ015A503ZLB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BZ015A503ZLB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

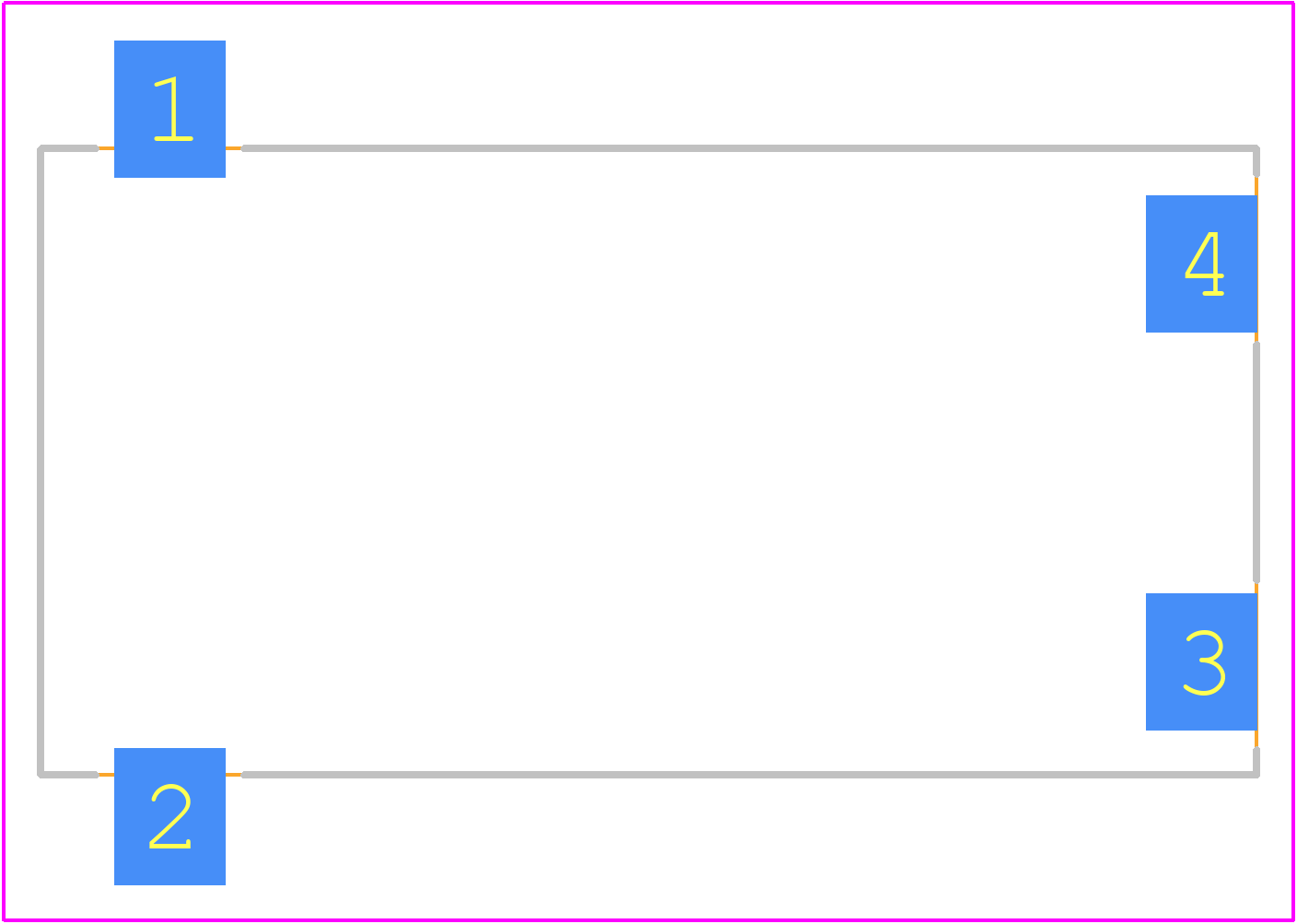

BZ015A503ZLB - Kyocera AVX PCB footprint - Other - Other - BZ01_1
click to zoom
3D Models
BZ015A503ZLB - Kyocera AVX - 3D model - Other - BZ01_1
click to zoom

BZ015A503ZLB Details

  • Manufacturer Part Number:

    BZ015A503ZLB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    50000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e4

  • Length:

    28 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    17 mm

BZ015A503ZLB Frequently Asked Questions (FAQs)

  • The recommended land pattern for the BZ015A503ZLB can be found in the Kyocera AVX Components' recommended land pattern document, which provides detailed information on the pad layout and dimensions for optimal assembly and reliability.
  • The BZ015A503ZLB is rated for operation up to 125°C, but its performance may degrade at higher temperatures. For applications exceeding 125°C, derating may be necessary, and it's recommended to consult with Kyocera AVX Components' application engineers for guidance.
  • The maximum recommended voltage derating for the BZ015A503ZLB is 80% of the rated voltage. Exceeding this derating may compromise the component's reliability and lifespan.
  • Yes, the BZ015A503ZLB is suitable for high-frequency applications up to several hundred kHz. However, it's essential to consider the component's self-resonant frequency and impedance characteristics to ensure optimal performance.
  • The recommended soldering profile for the BZ015A503ZLB follows the IPC-J-STD-020D standard, with a peak temperature of 260°C and a dwell time of 30-90 seconds. It's essential to consult the datasheet and Kyocera AVX Components' application notes for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BZ015A503ZLB Overview

Use the download button to access the BZ015A503ZLB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BZ015, or try a keyword search, such as Special Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
