BZ12GA124ZAB - Kyocera AVX

Description: Cap Supercap 0.12F 16V -20% to 80% (48 X 30 X 9.1mm) T hrough Hole 60uA 0.16 Ohm 70°C Bulk

Download BZ12GA124ZAB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BZ12GA124ZAB - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

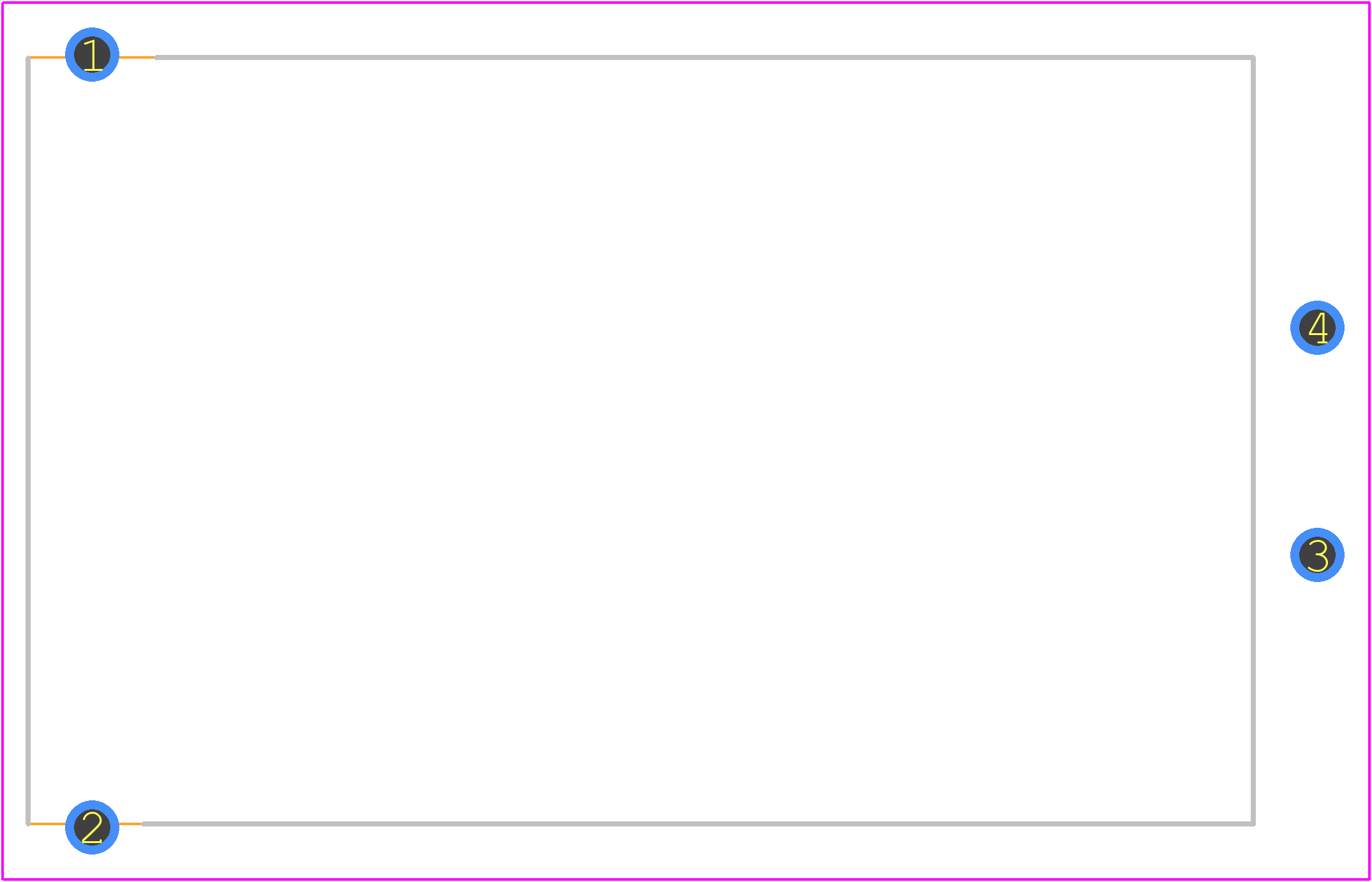

BZ12GA124ZAB - Kyocera AVX PCB footprint - Other - Other - 48 X 30 X 9.1mm
click to zoom
3D Models
BZ12GA124ZAB - Kyocera AVX - 3D model - Other - 48 X 30 X 9.1mm
click to zoom

BZ12GA124ZAB Details

  • Manufacturer Part Number:

    BZ12GA124ZAB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Capacitance:

    120000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

  • Height:

    9.1 mm

  • JESD-609 Code:

    e4

  • Length:

    48 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    RECTANGULAR

  • Packing Method:

    BULK

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    16 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Shape:

    FLAT

  • Width:

    30 mm

BZ12GA124ZAB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the BZ12GA124ZAB is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, the BZ12GA124ZAB is a high-frequency capacitor with a self-resonant frequency of 1.2 GHz, making it suitable for high-frequency applications.
  • The maximum operating voltage derating for the BZ12GA124ZAB is 80% of the rated voltage, which is 12.8V for this capacitor.
  • Yes, the BZ12GA124ZAB is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.
  • The MSL of the BZ12GA124ZAB is 3, which means it can withstand exposure to moisture for up to 168 hours.
