The recommended land pattern for the BZX84B10VLT116 can be found in the ROHM Semiconductor's packaging specification document, which is usually available on their website. The document provides detailed information on the recommended pad layout, solder mask, and soldering conditions for the device.
To prevent damage during assembly, it is recommended to handle the BZX84B10VLT116 by the body, avoiding touching the leads or the glass diode. It is also recommended to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
The maximum surge current that the BZX84B10VLT116 can withstand is not explicitly stated in the datasheet. However, according to ROHM Semiconductor's application notes, the device can withstand a surge current of up to 10A for a duration of 1ms, but this may vary depending on the specific application and operating conditions.
The BZX84B10VLT116 has a maximum operating temperature of 150°C, but it is recommended to derate the device's voltage and current ratings at high temperatures. ROHM Semiconductor provides a temperature derating chart in the datasheet, which can be used to determine the device's performance at elevated temperatures.
The BZX84B10VLT116 is a zener diode, and its polarity is determined by the cathode (K) and anode (A) markings on the device. The cathode is usually marked with a band or a dot, and it should be connected to the positive voltage rail in the circuit.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BZX84B10VLT116 Overview

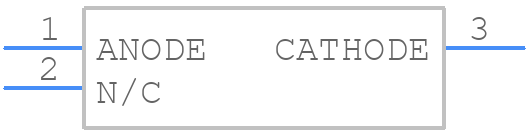

Use the download button to access the BZX84B10VLT116 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BZX84,
or try a keyword search, such as Zener Diodes
