Part Image

BZX84C18HE3-TP - MCC

Description: Halogen Free. "Green" Device (Note 1) • AEC-Q101 Qualified • Planar Die Construction • Ideally Suited for Automated Assembly Processes • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)

Download BZX84C18HE3-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

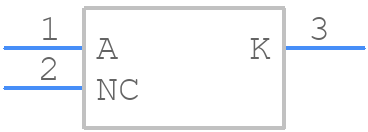

Symbol
BZX84C18HE3-TP - MCC - PCB symbol
click to zoom
PCB Footprints
BZX84C18HE3-TP - MCC PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23-ren20
click to zoom
3D Models
BZX84C18HE3-TP - MCC - 3D model - SOT23 (3-Pin) - SOT-23-ren20
click to zoom

BZX84C18HE3-TP Details

  • Manufacturer Part Number:

    BZX84C18HE3-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Diode Type:

    ZENER DIODE

  • Dynamic Impedance-Max:

    45 Ω

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Knee Impedance-Max:

    225 Ω

  • Number of Terminals:

    3

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.35 W

  • Reference Voltage-Nom:

    18 V

  • Reverse Current-Max:

    0.1 µA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Working Test Current:

    5 mA

BZX84C18HE3-TP Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the BZX84C18HE3-TP is between 240°C to 260°C for a maximum of 5 seconds.
  • While the BZX84C18HE3-TP is a general-purpose Zener diode, it is not recommended for high-frequency applications due to its relatively high capacitance and inductance. For high-frequency applications, consider using a diode with a lower capacitance and inductance.
  • While the BZX84C18HE3-TP can be used as a voltage regulator, it is not recommended due to its limited power dissipation capability and relatively high impedance. For voltage regulation, consider using a dedicated voltage regulator IC or a more suitable Zener diode with a higher power rating.
  • The typical junction-to-ambient thermal resistance of the BZX84C18HE3-TP is around 350°C/W. However, this value can vary depending on the specific application and PCB design.
  • Yes, the BZX84C18HE3-TP diode is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium above the specified limits.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BZX84C18HE3-TP Overview

Use the download button to access the BZX84C18HE3-TP schematic symbol, PCB footprint, and 3D model.
