BZX84C18VLT116 - ROHM Semiconductor

Description: Zener Diodes ZENER VOLT REG.

Download BZX84C18VLT116 Model

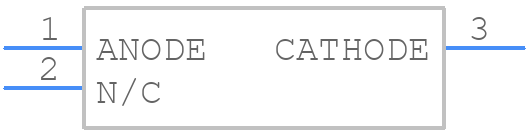

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BZX84C18VLT116 - ROHM Semiconductor PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SSD3 SOT-23
click to zoom
3D Models
BZX84C18VLT116 - ROHM Semiconductor  - 3D model - SOT23 (3-Pin) - SSD3 SOT-23
click to zoom

BZX84C18VLT116 Details

  • Manufacturer Part Number:

    BZX84C18VLT116

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Additional Feature:

    HIGH RELIABILITY

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    ZENER DIODE

  • JESD-30 Code:

    R-PDSO-G3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Power Dissipation-Max:

    0.25 W

  • Reference Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tol-Max:

    6.41%

  • Working Test Current:

    5 mA

BZX84C18VLT116 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BZX84C18VLT1 is -65°C to 150°C.
  • To ensure reliability, it's essential to follow the recommended derating curve for the device, and consider the thermal resistance and power dissipation of the component.
  • The maximum allowable power dissipation for the BZX84C18VLT1 is 500mW. Exceeding this limit can lead to device failure.
  • The BZX84C18VLT1 is designed to operate in the reverse bias region, and its characteristics are specified in the datasheet. However, it's essential to ensure that the device is not subjected to excessive reverse voltage or current, which can lead to device failure.
  • While the BZX84C18VLT1 can be used as a voltage regulator, it's essential to consider the device's power dissipation, thermal resistance, and voltage tolerance to ensure stable operation.
