C02 - XP POWER

Description: XP Power C02 DC-High Voltage DC Non-Isolated Converters 1 5mA 200V dc 1W

Download C02 Model

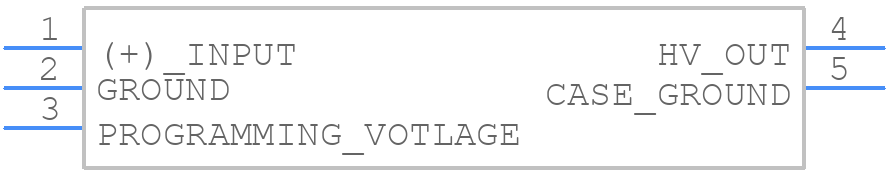

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

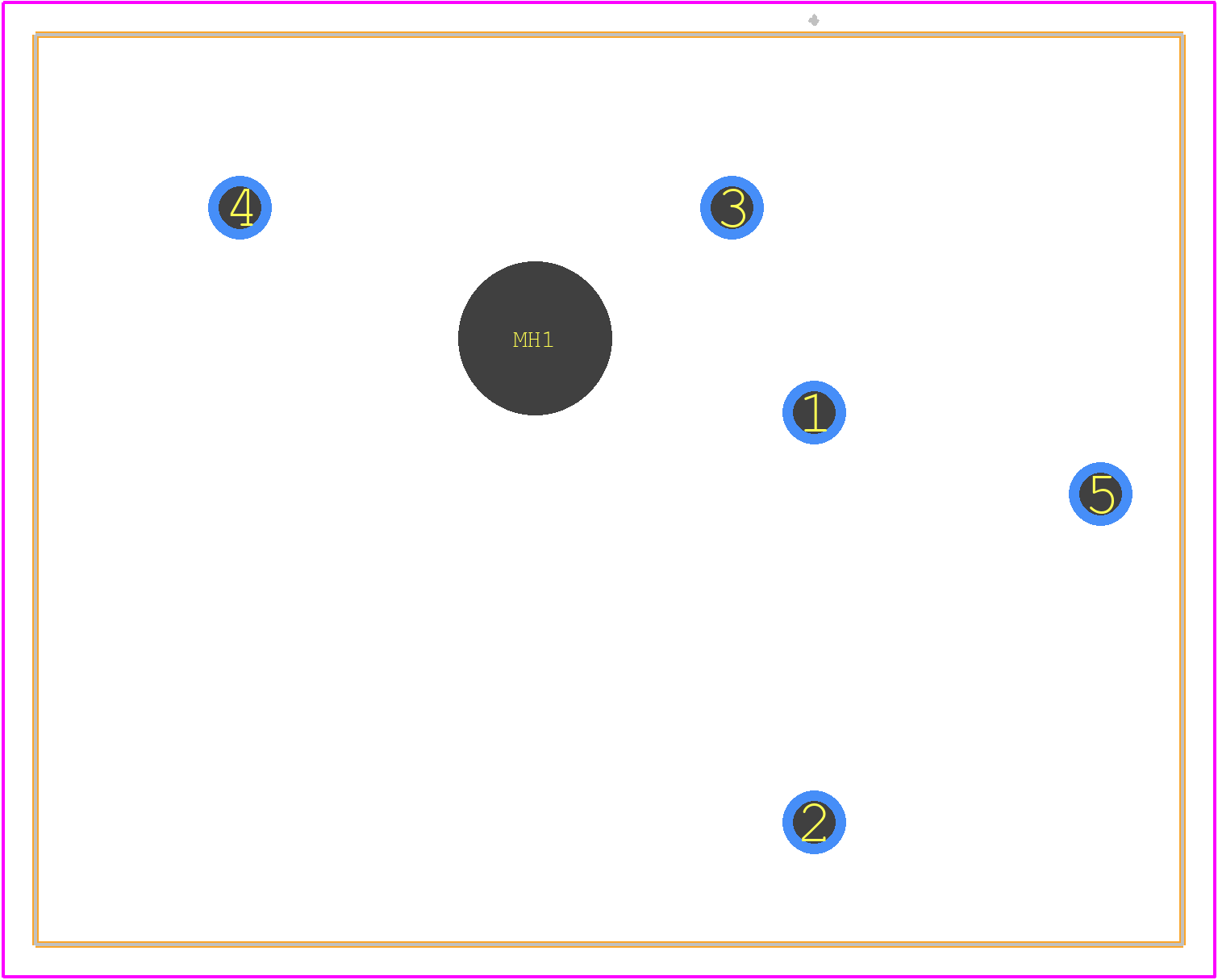

C02 - XP POWER PCB footprint - Other - Other - C02-4
click to zoom
3D Models
C02 - XP POWER  - 3D model - Other - C02-4
click to zoom

C02 Details

  • Manufacturer Part Number:

    C02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    11.5 V

  • JESD-30 Code:

    R-XXMA-P6

  • Length:

    35.56 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -10 °C

  • Output Voltage-Max:

    200 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.21 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    YES

  • Width:

    28.19 mm
