C146K8JL - TE Connectivity

Description: Body Features: Lead Type Axial-Leaded | Configuration Features: Number of Resistors 1 | Dimensions: Passive Component Dimensions 53.3 x 8.5 MM | Electrical Characteristics: Resistance Class 1kΩ – 1MΩ | Power Rating 14 WATT | Resistance Value 6.8K OHM | Operating Voltage 650 V | Passive Component Tolerance 5 PCT | Packaging Features: Packaging Method Loose Piece - Tray | Product Type Features: Element Type Wire Wound | Resistor Type Power Resistor | Termination Features: Number of Terminations 2 | Termin

Download C146K8JL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
C146K8JL - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

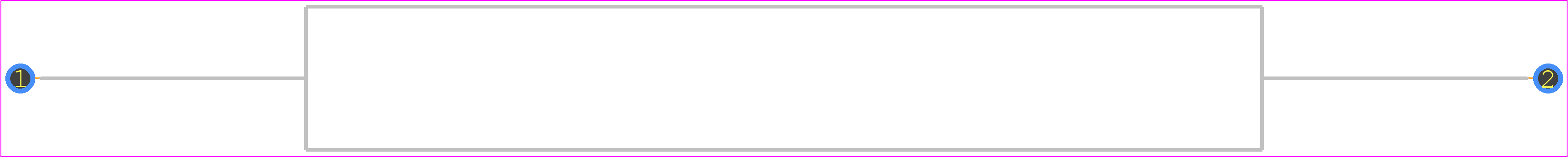

C146K8JL - TE Connectivity PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - C146K8JL
click to zoom
3D Models
C146K8JL - TE Connectivity - 3D model - Resistors, Axial Diameter Horizontal Mounting - C146K8JL
click to zoom

C146K8JL Details

  • Manufacturer Part Number:

    C146K8JL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.80

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    10

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Package Shape:

    TUBULAR PACKAGE

  • Packing Method:

    BULK; TRAY

  • Physical Dimension:

    53.3mm x 8.5mm

  • Rated Power Dissipation (P):

    14 W

  • Resistance:

    6800 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    WIRE WOUND

  • Temperature Coefficient:

    90 ppm/°C

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    650 V

C146K8JL Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for C146K8JL is between 250°C to 260°C, with a maximum exposure time of 3 seconds.
  • Yes, C146K8JL is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
  • The maximum operating voltage derating for C146K8JL is 80% of the rated voltage, ensuring reliable operation and minimizing the risk of electrical stress.
  • While C146K8JL is primarily designed for general-purpose applications, it can be used in high-frequency applications up to 1 MHz, but with reduced capacitance and increased equivalent series resistance (ESR).
  • C146K8JL is designed to operate within a temperature range of -55°C to 125°C, with a capacitance tolerance of ±20% at 125°C. However, the capacitor's performance may degrade at extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

C146K8JL Overview

Use the download button to access the C146K8JL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like C146K, or try a keyword search, such as Wire Wound Resistors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
