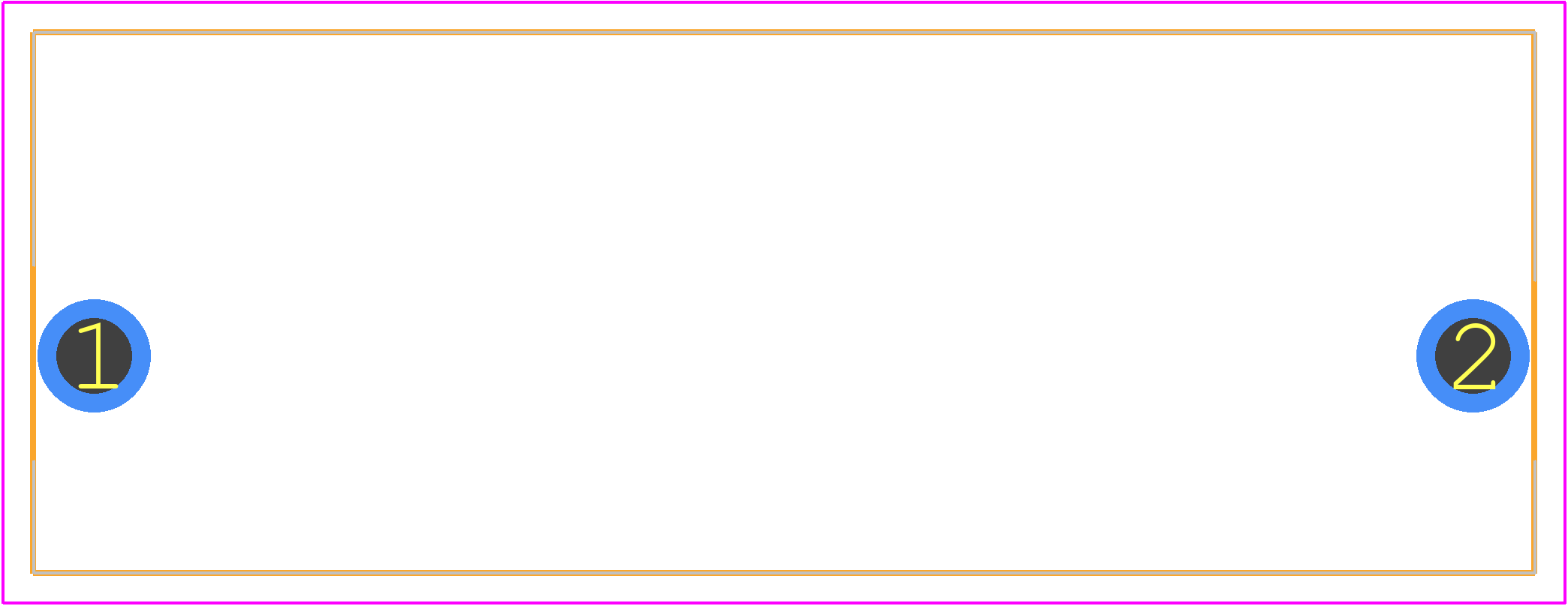

C220-050-2AE footprint, schematic symbol and 3D model by Ohmite

Symbol

PCB Footprints

3D Models

C220-050-2AE Details

The thermal resistance of the C220-050-2AE is typically around 10°C/W, but this can vary depending on the specific application and mounting method.
While the C220-050-2AE is a wirewound resistor, it is not recommended for high-frequency applications above 100 kHz due to its inductive nature. For high-frequency applications, a thin-film or metal-film resistor may be more suitable.
Yes, the C220-050-2AE is designed to withstand high-vibration environments, making it suitable for applications in aerospace, automotive, and industrial control systems.
Yes, the C220-050-2AE is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The maximum operating temperature of the C220-050-2AE is 250°C, but derating is recommended above 150°C to ensure reliable operation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the C220-050-2AE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like C220-, or try a keyword search, such as Heat Sinks
