C247S - Coto Technology

Description: Solid State Relays - PCB Mount

Download C247S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

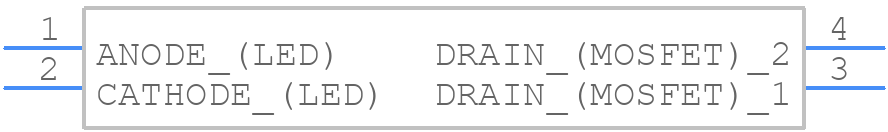

C247S - Coto Technology - PCB symbol
click to zoom
PCB Footprints
C247S - Coto Technology PCB footprint - Small Outline Packages - Small Outline Packages - C247S
click to zoom
3D Models
C247S - Coto Technology - 3D model - Small Outline Packages - C247S
click to zoom

C247S Details

  • Manufacturer Part Number:

    C247S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8536.41.00.60

  • Manufacturer:

    Coto Technology USA

  • YTEOL:

    5.59

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    1.25 A

  • On-state Resistance-Max:

    0.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    2.55 mm

  • Overall Length:

    4.6 mm

  • Terminal Finish:

    Matte Tin (Sn)

C247S Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the C247S is -40°C to 85°C.
  • To ensure reliable switching performance in high-frequency applications, it is recommended to use a low-ESR capacitor and a low-inductance layout, and to minimize the lead length and wire resistance.
  • The maximum allowable voltage for the C247S is 120VDC or 70VAC.
  • To handle ESD protection for the C247S, it is recommended to use a TVS diode or a zener diode with a voltage rating higher than the maximum operating voltage, and to follow proper PCB layout and handling procedures.
  • The recommended storage temperature range for the C247S is -40°C to 125°C.
