C3M0025065J1 - Wolfspeed

Description: 650 V, 25 mΩ, TO-263-7 XL package, Industrial qualified, Discrete SiC MOSFET

Download C3M0025065J1 Model

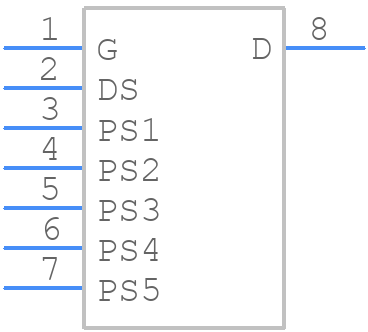

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

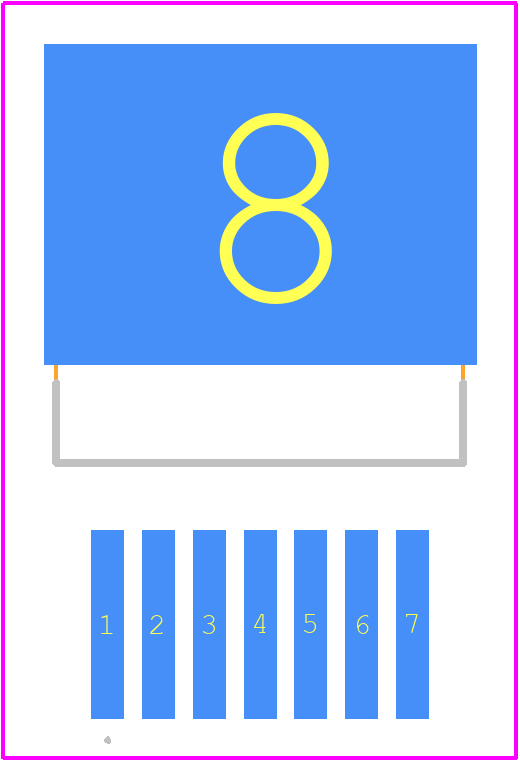

PCB Footprints
C3M0025065J1 - Wolfspeed PCB footprint - Other - Other - TO-263-7L XL_J1
click to zoom
3D Models
C3M0025065J1 - Wolfspeed  - 3D model - Other - TO-263-7L XL_J1
click to zoom

C3M0025065J1 Details

  • Manufacturer Part Number:

    C3M0025065J1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    7

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    80 A

  • Drain-source On Resistance-Max:

    0.034 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    12 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    271 W

  • Pulsed Drain Current-Max (IDM):

    251 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

C3M0025065J1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the C3M0025065J1 is 150°C, but it's recommended to operate it at a maximum of 125°C for optimal performance and reliability.
  • To ensure proper biasing, follow the recommended biasing scheme outlined in the datasheet, and make sure to provide a stable voltage supply to the gate and drain terminals. Additionally, consider using a gate driver IC to ensure fast switching times and minimal ringing.
  • For optimal thermal performance, use a PCB with a thick copper layer (at least 2 oz) and a thermal via array under the device. Ensure good thermal conductivity by using a thermal interface material (TIM) between the device and the heat sink. A heat sink with a thermal resistance of 1°C/W or lower is recommended.
  • Use a voltage clamp or a transient voltage suppressor (TVS) to protect the device from overvoltage conditions. For overcurrent protection, consider using a current sense resistor and a comparator to detect excessive current levels. Additionally, ensure that the device is operated within its recommended operating conditions to prevent damage.
  • The recommended gate drive voltage for the C3M0025065J1 is between 0V and 5V, with a maximum gate-source voltage of 6V. Ensure that the gate drive voltage is within this range to prevent damage to the device.
