C3M0032120J1 - Wolfspeed

Description: 1200 V, 32 mΩ, TO-263-7 XL package, Industrial qualified, Discrete SiC MOSFET

Download C3M0032120J1 Model

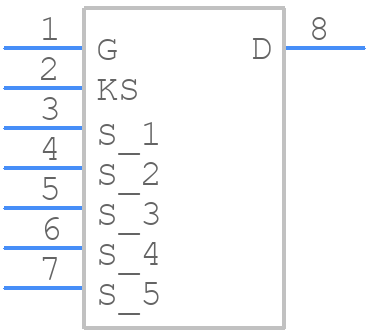

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

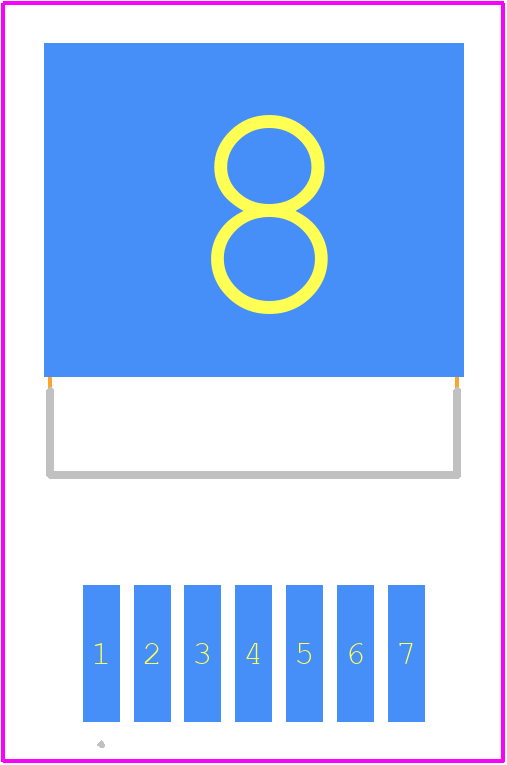

C3M0032120J1 - Wolfspeed PCB footprint - Other - Other - TO-263-7L XL_J1
click to zoom
3D Models
C3M0032120J1 - Wolfspeed  - 3D model - Other - TO-263-7L XL_J1
click to zoom

C3M0032120J1 Details

  • Manufacturer Part Number:

    C3M0032120J1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Wolfspeed

  • YTEOL:

    6.82

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    1200 V

  • Drain Current-Max (ID):

    68 A

  • Drain-source On Resistance-Max:

    0.043 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    11 pF

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    245

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    277 W

  • Pulsed Drain Current-Max (IDM):

    120 A

  • Reference Standard:

    IEC-60747-8-4

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

C3M0032120J1 Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal via array underneath the device is recommended. The thermal vias should be connected to a solid copper plane on the bottom layer to dissipate heat efficiently.
  • Use a gold wire with a diameter of 0.7-1.0 mil (18-25 μm) and a bonding force of 2-5 grams. The bonding temperature should be between 150°C to 180°C. Ensure the bonding area is clean and free of oxidation.
  • The maximum allowed voltage transient is 10% above the maximum rated voltage (VDS) for a duration of less than 10 μs. Exceeding this may cause device damage or failure.
  • Handle the device in an ESD-controlled environment. Use an ESD wrist strap or mat, and ensure all equipment is grounded. Avoid touching the device's pins or exposed die.
  • Store the device in a dry, cool place (less than 30°C and 60% RH) in its original packaging or an anti-static bag. Avoid exposing the device to direct sunlight or moisture.
